    3.5inch DSI Capacitive Touch Display, 5-Point Touch, 480 × 800 Pixels, IPS display panel, Supports Raspberry Pi Series Boards

    3.5″ DSI Touch Display

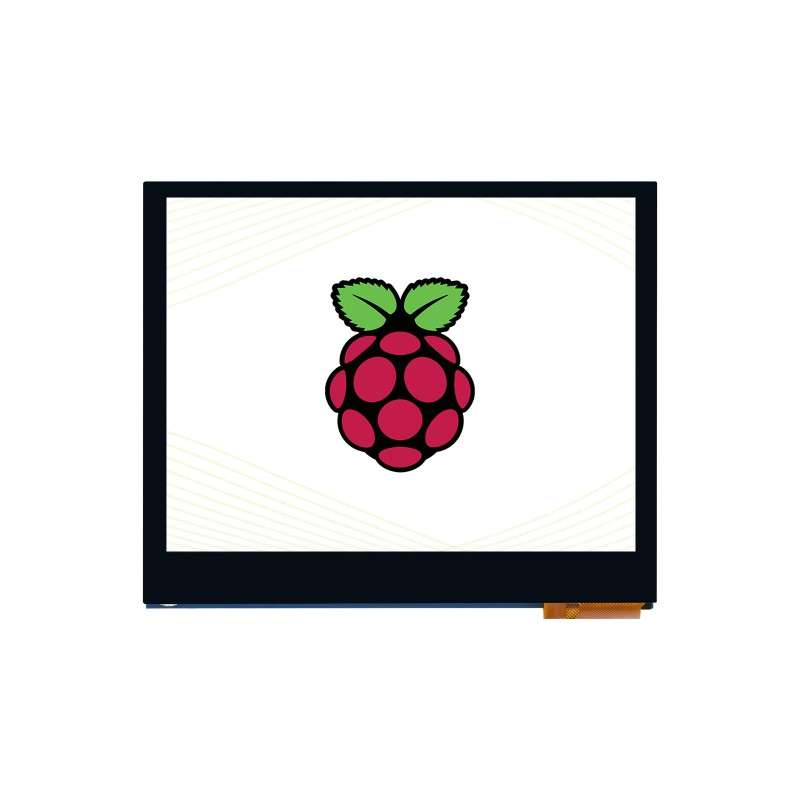

    3.5inch DSI Touch Display, front view
      • SizeDimension.png3.5″
      • ResolutionResolution.png480 × 800
      • Display Interfacemipi.pngDSI
      • Display PanelIPS.pngIPS
      • Viewing AngleViewing_angle.png170°
    • Touch TypeCapacitive_touch.pngCapacitive
    • Touch PointsFive_touch.png5-Point
    • Touch PortI2C.pngI2C
    • Touch PanelTempered_panel.pngToughened Glass

    The display orientation is portrait by default, 480 × 800 resolution (H×V)
    Change the software config for landscape display


    Device & System Support

    Raspberry Pi
    Supports Raspberry Pi OS, 5-point touch

    Connection Examples

    Working with Raspberry Pi 5


    3.5inch DSI Touch Display, working with Raspberry Pi 5

    Working with Raspberry Pi 4


    3.5inch DSI Touch Display, working with Raspberry Pi 4

    Working with Raspberry Pi 3B+



    3.5inch DSI Touch Display, working with Raspberry Pi 3B+

    * for reference only, the above boards or hosts are NOT included.


    IPS display panel

    3.5inch DSI Touch Display, wide viewing angle IPS display panel

    5-Point Capacitive Touch

    3.5inch DSI Touch Display with 5-Point capacitive touch
    1. up to 5-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel

    Outline Dimensions
    3.5inch DSI Touch Display, dimensions


    Support touch screen customization

    Support the following ways to customize the touch screen display in bulk order

    Over a decade
    Waveshare grows with display

    * Waveshare has been focusing on display design for over 10 years.

    Resources & Services
    Wiki: www.waveshare.com/wiki/3.5inch_DSI_LCD_(H)

    Balenie Obsahuje / Package Content

    1. 3.5inch DSI LCD (H) x1
    2. FPC 15PIN 1.0 pitch cable 50mm (opposite sides) x1
    3. DSI-Cable-12cm x1
    4. FPC 15PIN 1.0 pitch cable 160mm (opposite sides) x1
    5. Standoffs x1
