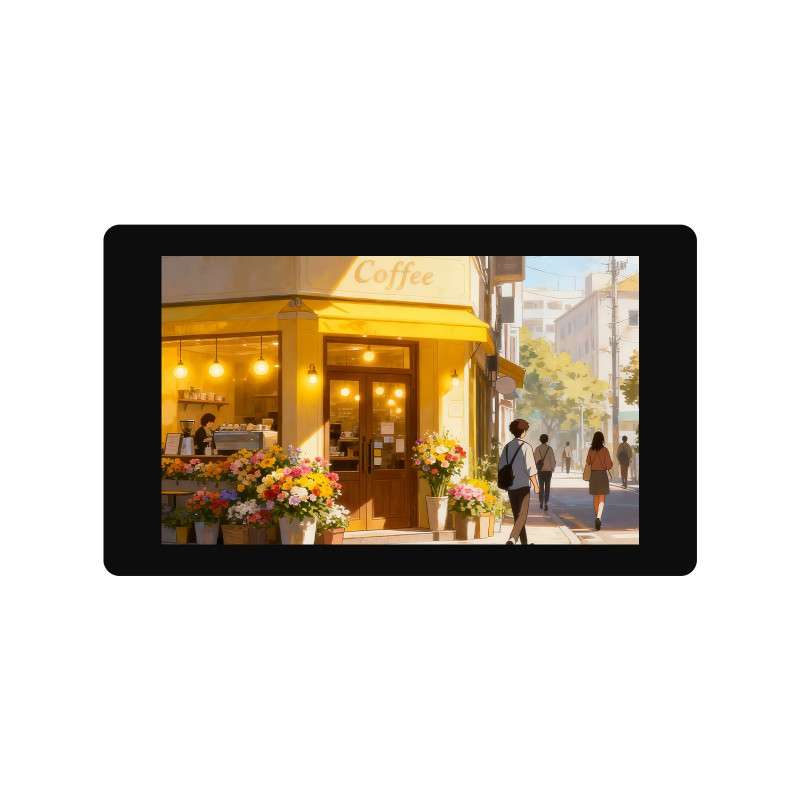

4inch DSI Capacitive Touch Display, 480×800 IPS Display Panel, 5-Point Touch, Optical Bonding Glass Panel (WS-34354)
WS-34354
34,32 €
27.90 € bez DPH
4inch DSI Capacitive Touch Display, 480×800 IPS Display Panel, 5-Point Touch, Optical Bonding Glass Panel (WS-34354)
4inch DSI Capacitive Touch Display, 480×800 IPS Display Panel, 5-Point Touch, Optical Bonding Glass Panel (WS-34354)
4inch DSI Capacitive Touch Display, 480 × 800 Resolution, IPS display panel, 5-Point Touch, optical bonding toughened glass panel
4 / 4.3inch DSI Touch Display
The display orientation is portrait by default, 480 × 800 resolution (H × V).
Change the software config for landscape display.
- Size
4″ / 4.3″ - Resolution
480 × 800 - Display Interface
DSI - Display Panel
IPS - Viewing Angle
170° - Touch Type
Capacitive - Touch Points
5-Point - Touch Interface
I2C - Touch Panel
Toughened Glass - Touch Panel Tech
Optical Bonding - Enclosure
Aluminum Alloy
- Size
Version Options
4-DSI-TOUCH-A
4inch touch display, 480 × 800 resolution
4.3-DSI-TOUCH-A
4.3inch touch display, 480 × 800 resolution
Device & System Support
Raspberry Pi
Supports Raspberry Pi OS, 5-point touch
RK3506
Supports Buildroot, Ubuntu, and other systems, 5-point touch
ESP32-P4
Supports LVGL GUI programs, 5-point touch
RK3576
Supports Buildroot, Debian, Ubuntu, Android, and other systems, 5-point touch
LCD Parameters
| Model | 4-DSI-TOUCH-A | 4.3-DSI-TOUCH-A |
|---|---|---|
| Resolution | 480 × 800 pixels (H × V) | |
| Contrast Ratio | 800:1 | 1000:1 |
| Display IC | ST7701S | |
| Touch IC | GT911 | |
| Communication Interface | MIPI 2-lane | |
| Brightness | 350cd/m² | 500cd/m² |
| Outline Dimensions | 108.30 × 65.10 (mm) | 116.50 × 68.90 (mm) |
| Display Area | 86.40 × 51.84 (mm) | 93.60 × 56.16 (mm) |
Connection Examples
Working with Raspberry Pi 5
Please connect the FFC cable as shown above, and power the LCD
through the GPIO 5V pin
Working with Raspberry Pi 4B
Please connect the DSI cable as shown above, and power the LCD
through the GPIO 5V pin
Working with ESP32-P4-Module-DEV-KIT
Working with Luckfox Omni3576
Working with Luckfox Lyra
* for reference only, the above boards or hosts are NOT included.
IPS Display Panel
Excellent Display Performance With 170° Wide Viewing Angle
5-Point Capacitive Touch
- up to 5-point touch, depending on the operating system
- up to 6H hardness toughened glass panel
- Optical Bonding, display well and Dust-Resistant
Supports backlight adjustment via software
Interface Introduction
Outline Dimensions
4-DSI-TOUCH-A
4.3-DSI-TOUCH-A
Support touch screen customization
Support the following ways to customize the touch screen display in bulk order
Over a decade
Waveshare grows with display
Waveshare grows with display
* Waveshare has been focusing on display design for over 15 years.
Balenie Obsahuje / Package Content
4-DSI-TOUCH-A
- 4-DSI-TOUCH-A x1
- MIPI-DSI-Cable-12cm x1
- MX 1.25 2PIN to 2.54 3PIN cable 110mm x1
- FFC 22PIN cable ~200mm (opposite sides) x1
- FFC 22PIN cable ~100mm (opposite sides) x1
- MX1.25 2PIN to MX1.25 4PIN cable ~150mm x1
- Standoffs x1
WS-34354
Špecifické referencie
4inch DSI Capacitive Touch Display, 480×800 IPS Display Panel, 5-Point Touch, Optical Bonding Glass Panel (WS-34354)
4inch DSI Capacitive Touch Display, 480×800 IPS Display Panel, 5-Point Touch, Optical Bonding Glass Panel (WS-34354)
34,32 €
27.90 € bez DPH
