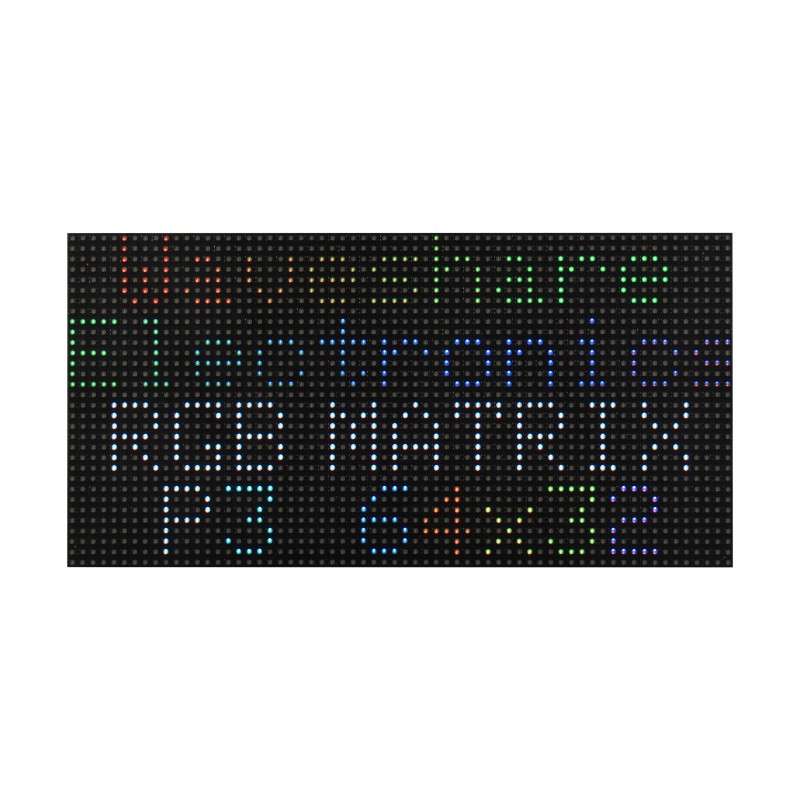

RGB Full-color LED Matrix Panel, 3mm Pitch, 64×32 Pixels, Adjustable Brightness, GOB Version (WS-33840)
WS-33840
31,86 €
25.90 € bez DPH
RGB Full-color LED Matrix Panel, 3mm Pitch, 64×32 Pixels, Adjustable Brightness, GOB Version (WS-33840)
RGB Full-color LED Matrix Panel, 3mm Pitch, 64×32 Pixels, Adjustable Brightness, GOB Version (WS-33840)
- GOB Version
RGB full-color LED matrix panel, 3mm Pitch, 64 × 32 pixels, adjustable brightness, GOB version
64 × 32 full-color LED matrix panel
2048 individual RGB LEDs, 3mm pitch
supports Raspberry Pi Pico, ESP32, Arduino...
* the product includes the display only and requires a host controller, such as Raspberry Pi, Pico, ESP32, or Arduino for display output.
Version Options
RGB-Matrix-P3-64x32-B
GOB version
RGB-Matrix-P3-64x32
Standard version
Features at a glance
The product is a 64 × 32 resolution full-color RGB LED dot matrix module, integrating 2048 LEDs and equipped with dual HUB75 headers, supporting cascade expansion and rapid integration. The GOB version features enhanced encapsulation, improving protection and operational reliability.
- 2048 individual RGB LEDs, full-color display, adjustable brightness
- 64 × 32 pixels, 3mm pitch, allows displaying text, colorful image, or animation
- 192 × 96 (mm) dimensions, moderate size, suitable for DIY desktop display or wall mount display
- Onboard dual HUB75 headers, one for controller data input, one for output, chain support
- GOB technology delivers anti-collision, waterproof, moisture-proof, and dust-proof protection
- Provides open source development resources and tutorials, for use with Raspberry Pi Pico, ESP32, Arduino, and so on
Specifications
| Dimensions | 192 × 96 (mm) |
|---|---|
| Pixels | 64 × 32 = 2048 DOTS |
| Pitch | 3mm |
| Pixel form | 1R1G1B |
| Viewing angle | ≥160° |
| Control type | synchronization |
| Driving | 1/16 scan |
| Header | HUB75 |
| Power supply | 5V / 2.5A (VH4 header input) |
| Power | ≤12W |
Headers definition
* this back view is for reference only, PCB silkscreen and layout may have small differences from batch to batch, but the software is compatible.
| Pin | Description | Pin | Description |
|---|---|---|---|
| VCC | 5V power input | GND | Ground |
| R1 | R higher bit data | R2 | R lower bit data |
| G1 | G higher bit data | G2 | G lower bit data |
| B1 | B higher bit data | B2 | B lower bit data |
| A | A line selection | B | B line selection |
| C | C line selection | D | D line selection |
| E | E line selection | CLK | clock input |
| LAT/STB | latch pin | OE | output enable |
chainable design
multi LED matrix panel can be chained together to build a larger panel
via HUB75 input/output header
Note: Each RGB LED matrix panel requires a standalone 5V/2.5A or above power supply, when they're chained to display.
Usage scenarios
DIY maker desktop or wall mount display, signboard, environment monitor...
Dimensions
Balenie Obsahuje / Package Content
RGB-Matrix-P3-64x32-B
- RGB-Matrix-P3-64x32 GOB matrix x1
- VH4 2PIN cable ~500mm x1
- 16PIN flat cable ~200mm x1
- Power supply terminal adapter x1
- 2 × 8PIN cable ~30cm x1
- Magnetic screws pack 4PCS x1
