      Description

      ATOM Echo  is a Programmable Smart Speaker based on the M5ATOM design. Its form factor is very small, its dimensions are only 24 * 24 * 17 mm. Music can be played using the bluetooth capabilities of the ESP32 from a mobile phone or tablet. The device could be programmed to access AWS, Baidu and other cloud platforms, using the built-in microphone and speaker for voice interaction, so that M5AtomECHO has certain AI capabilities, realizing voice control, story telling, Internet of things and other functions. The speaker is embedded with an RGB LED (SK6812), which can visually display the connection status. In addition to being used as a Bluetooth speaker, it still has the control ability of Atom series. You can connect devices through the grove interface, G21 / G25 can only be used for general I/O, they do not support I2C and UART.Screw hole on the back is convenient for users to fix.

      For more news and projects, please refer to below:

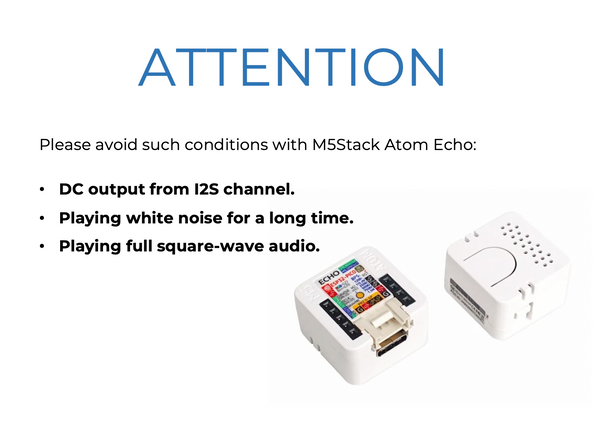

      Note: This product is not recommended to play low-frequency or heavy music for a long time.

      20200612120019_600x600.png?v=1591934465

      Product Features

      • Light and small
      • Support STT services
      • Based on ESP32, Support A2DP, BLE 4.0
      • 2.4G WiFi IEEE 802.11b/g/n
      • Built-in microphone and speaker
      • RGB LED status display indication
      • GROVE extension interface
      • Record and playback
      • Programmable key
      • Programming platform:Arduino、ESP-IDF/ADF

      Include

      • 1x ATOM ECHO

      Applications

      • Bluetooth Speaker
      • Voice control
      • IoT

      Specification

      ResourcesParameter
      SoC ESP-PICO-D4,240MHz,Dual Core,BLE,Wi-Fi
      Flash 4MB
      Interface 1x IR-TX,1x Function Button,1x Reset Button
      PinOut G21/G25/5V/GND, 3V3/G22/G19/G23/G33
      RGB LED SK6812
      Speaker 0.5W/NS4168 I2S
      Micphone SPM1423 PDM
      net weight 5g
      Gross weight 10g
      Product Size 24*24*17mm
      Package Size 63*63*12mm
