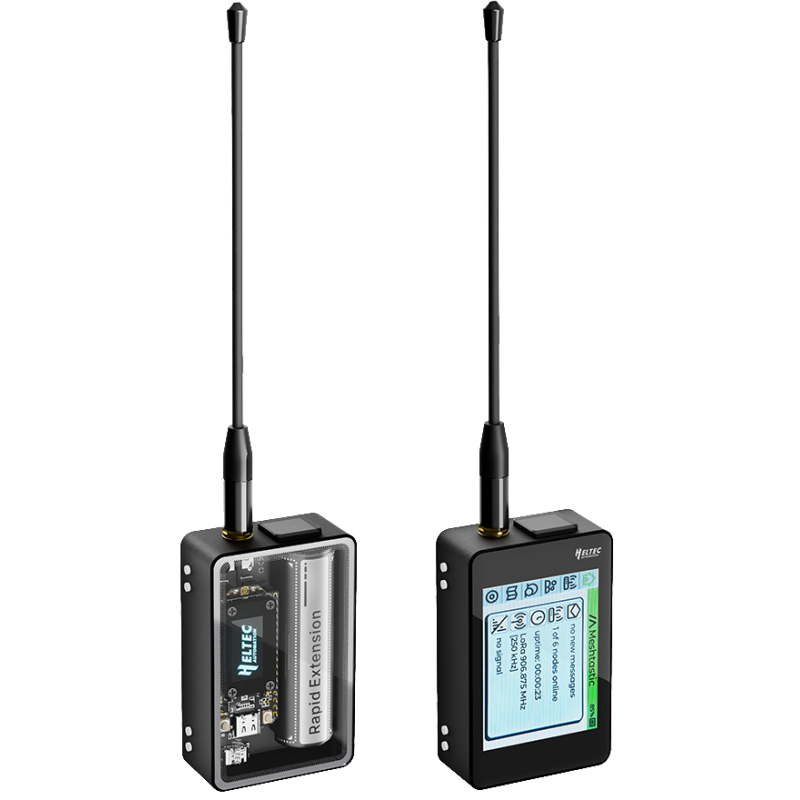

WiFi LoRa 32 V4 Expansion Kit Heltec - Quectel L76K, Accelerometer DA217, 2800mAh 18650
HT-ZC-324-3
97,17 €
79.00 € bez DPH
WiFi LoRa 32 V4 Expansion Kit Heltec - Quectel L76K, Accelerometer DA217, 2800mAh 18650
WiFi LoRa 32 V4 Expansion Kit - Quectel L76K, Accelerometer DA217, 2800mAh 18650
Rozširujúca sada WiFi LoRa 32 je komplexná sada špeciálne navrhnutá pre sériu WiFi LoRa 32, ktorá obsahuje ochranné puzdrá, rozširujúce dosky, senzorové moduly a ďalšie komponenty. Na platforme MQB si môžete prezrieť 3D modely a prispôsobiť parametre produktov tak, aby ste si zostavili sadu, ktorá vyhovuje vašim potrebám.
- LoRa Freq. : 863-928MHz
- TX Power : 28dBm
- Front Panel: Touch Screen
- GNSS : YES
- Battery : YES
Specifications
| Parameters | Description |
|---|---|
| Enclosure Material | Front Cover: Tempered Glass / Touch Screen; Side Cover: Aluminum Alloy; Rear Cover: Polycarbonate (PC) |
| Battery | 2800mAh 18650 flat-top Li-Ion Battery (Selecting “With Battery” will incur additional shipping costs) |
| GNSS Module(Optional) | Quectel L76K |
| Triaxial Accelerometer | DA217 |
| Touch Screen Resolution | 320*240 |
| Dimensions | 52×52×15mm |
| Weight | 200g (excluding battery) |
| Expansion Socket | B2B Female |
| Antenna Socket | SMA Female |
Pin Map
FAQ
Battery is optional. Please note that selecting the battery will incur additional shipping costs.
Docs & Resource
- [Attachment] — L76K GNSS Module User Manual
- [Attachment] — Main board schematic diagraml
- [Attachment] — Touch Screen Firmware
- [User Guide] — WiFi LoRa 32 Expansion Docs
- [User Guide] — Meshtastic Quick Start Guide
- [User Guide] —Buzzer and Sensor Configuration Guide
Packing list
The default packing list without selecting any accessories is as follows:
| Item | Quantity |
|---|---|
| Housing | x1 |
| WiFi LoRa 32 V4 | x1 |
| Expansion Board | x1 |
| LoRa Antenna | x1 |
| GNSS Antenna (GNSS version) | x1 |
| 18650 lithium battery (Optional) | x1 |
