      DESCRIPTION

      Comes with EU plug power adapter.

      4-DOF Metal Robot Arm Kit for micro:bit, Bluetooth Remote Control

      Overview

      Equip your micro:bit with this 4-DOF metal robot arm, and get started to explore the world of artificial intelligent robotic.

      This starter robotic arm kit includes: servo driver board, metal mechanical arm structure, and 4x metal gear servos. When used with the micro:bit, it is easy to control the arm by smart phone through Bluetooth connection.

      The Servo Driver

      Adopts Servo Driver for micro:bit:

      • micro:bit edge connector, directly pluggable
      • I2C controlled, using only 2 pins
      • Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
      • Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
      • Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
      • Reserved I2C control pins, allows to work with other control boards
      • Comes with development resources and manual (micro:bit graphical examples like Bluetooth/2.4G wir eless remote control)

      The Robot Arm Structure

      • 4-DOF, large solid base, metal mechanical grasper
      • Full aluminium alloy body, sandblasting oxidation surface, strong & durable
      • Clever mechanical structure and mounting design, agile to control, easy to build
      • Fitted with 4x metal gear servos (1x MG996R, 3x MG90S), large torque force, smooth moving

      Demo

      Robot Arm for micro:bit demo

      Development Resources

      Wiki : www.waveshare.com/wiki/Robot_Arm_for_micro_bit

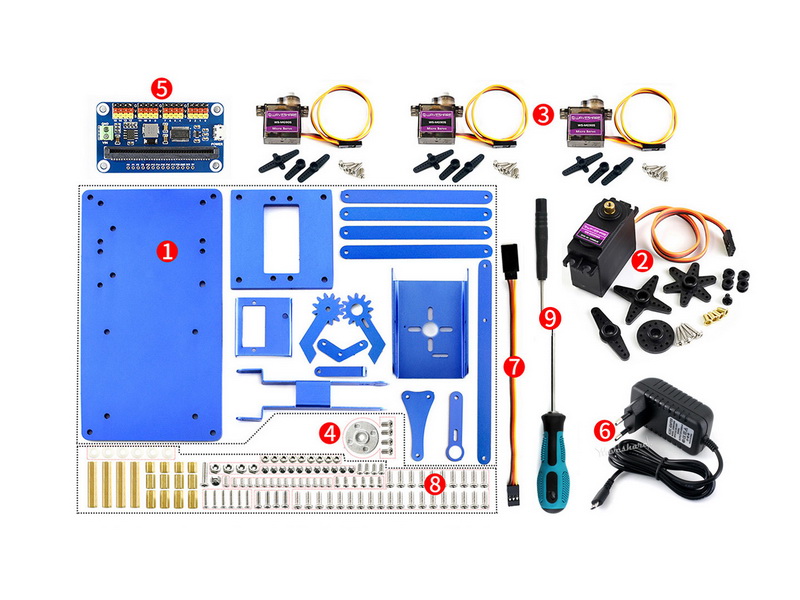

      PACKAGE CONTENT

      Note: micro:bit is NOT included.
      Different types of power plug are available, please select the proper one according to your outlet: USEU

      1. Metal arm parts x1
      2. MG996R Servo x1
      3. MG90S Servo x3
      4. MG996R servo wheel x1
      5. Servo Driver for micro:bit x1
      6. Power adapter EU standard USB output x1
      7. Servo extension wire 150mm x1
      8. Screws pack x1
      9. Screwdrivers 2PCS x1
      Robot Arm for micro:bit package
