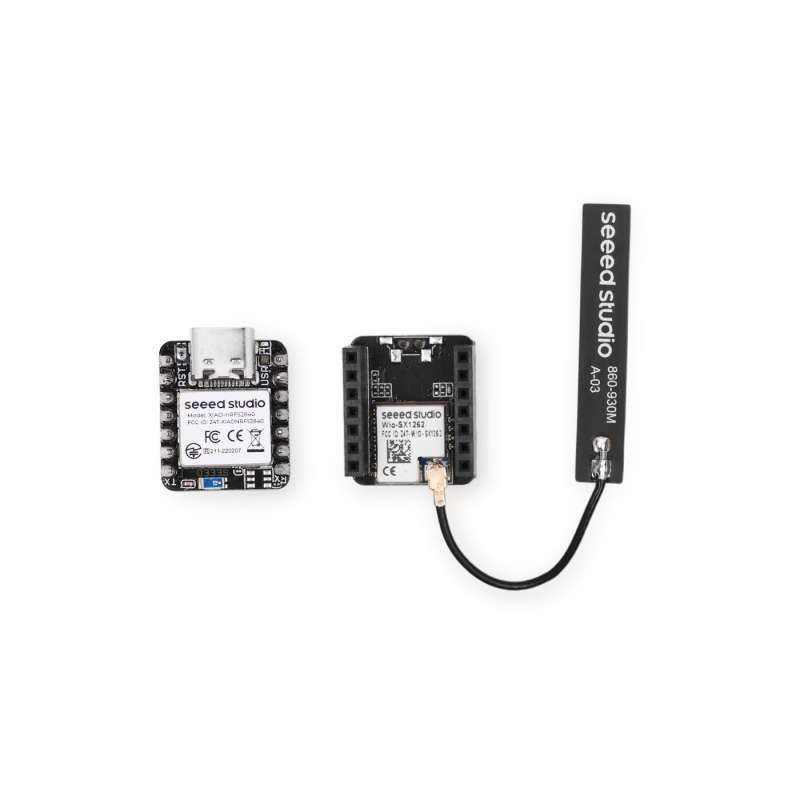

XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic (102010710)

XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic (102010710)

Name: XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic (102010710)
Brand: Seeed Studio
SKU: SE-102010710
Price: 16.3 EUR
Availability: BackOrder

Kód SE-102010710

16,30 €

13.25 € bez DPH

Popis
Detaily produktu

XIAO nRF52840 & Wio-SX1262 Kit for Meshtastic (102010710)

Táto súprava kombinuje XIAO nRF52840 a Wio-SX1262, podporuje BLE5.0 a LoRa (862-930 MHz) a pracuje s nízkou spotrebou energie. Môže sa použiť v rôznych oblastiach, ako sú Meshtastic, senzorové siete, monitorovanie životného prostredia, sledovanie majetku, vzdelávanie a inovácie.

Univerzálny mikrokontrolér: Obsahuje čip Nordic nRF52840 s FPU, pracujúci na frekvencii až 64 MHz, s viacerými vývojovými portmi, podporovaný Arduino / CircuitPython / Micropython
Výkonný LoRa: LoRa s dlhým dosahom na Semtech SX1262, podporuje pásma 868/915 MHz.
Dvojjadrová komunikácia: Podporuje duálny režim Bluetooth aj LoRa, čo umožňuje prepojenie medzi doménami.
S rozmermi iba 8 mm × 22 mm × 23 mm disponuje integrovanou anténou.

XIAO nRF52840	Nordic nRF52840 ARM® Cortex®-M4 with FPU runs up to 64 MHz
Wio-SX1262	Based on Semtech SX1262, supports 862-930MHz
Wireless	Bluetooth 5.0/NFC
Interface	XIAO nRF52840:1x UART, 1x IIC, 1x SPI(connect to SX1262),1x NFC, 1x SWD, 11x GPIO(PWM), 6x ADC
Interface	Wio-SX1262:1xSPI(connect to XIAO nRF52840)
Power	Input voltage (Type-C): 5V Input voltage (BAT): 4.2V
	Charging battery current: 50mA/100mA
	Standby power consumption: <5uA
Working Temperature	-40°C ~ 65°C
Dimensions	21 x 17.8mm

XIAO nRF52840 Onboard

PinOut

Wio-SX1262

Onboard
PinOut

Application

Meshtastic Node&Router: An ultra-small node that can serve as a portable device or as a fixed router to expand the Meshtastic network.
LoRa/LoRaWAN Sensor: A mini LoRaWAN sensor, ideal for beginners exploring LoRa/LoRaWAN.

For example, when combined with a GPS module (such as the XIAO L76K), it can be used to track the locations of logistics vehicles, livestock, and valuable equipment. Thanks to the long-distance coverage of LoRa (2-5 km in urban areas and over 10 km in suburban areas), it can reduce the cost of base station deployment.
The distance between the two nodes can reach up to 2KM (subject to the environment).
