Non-invasive AC Current Sensor-100A (ER-SEL98100NI) SCT013
ER-SEL98100NI
10,71 €
14,28 €
s DPH
Zľava 25%8.93 € bez DPH
Non-invasive AC Current Sensor-100A (ER-SEL98100NI) SCT013
Non-invasive AC Current Sensor-100A (ER-SEL98100NI) SCT013
OLIMEX SNS-CURRENT-CT013-100A
The AC current sensor is based on Current transformers, it transforms the big AC current to little, and then convert to voltage with the build-in resistor so users can get the AC current value via measuring the output voltage with any microcontroller such as Arduino. The split core type makes this sensor suitable for DIY usage such as energy monitoring for house & building.
Specification
- Input Current: 0~100A AC
- Output Mode: 0~50mA
- Non-linearity: ±3%
- Turn Ratio: 100A:0.05A
- Resistance Grade: Grade B
- Work Temperature: -25°C ~ ﹢70°C
- Dielectric Strength(between shell and output): 1000V AC/1min 5mA
- Leading Wire in Length: 1m
- Open Size: 13mm x 13mm
Wiki & External links
- CT sensors - An introduction
- CT sensors - Interfacing with an Arduino
- How to build an Arduino energy monitor
- Datasheet
FEATURES
- Dielectric strength 1000VAC/MIN
- Rated input current:0-100A
- Output: 0-50mA or 0-1V
- Opening size: 13mm×13mm
- Non-linearity±3% (10%-120% rated input current)
- 1.5m leading wire, Φ3.5 three core plug standard output
- Working temperature: -25C+70C
- Fire resistance propety: in accordance with UL94-VO
DOCUMENTS

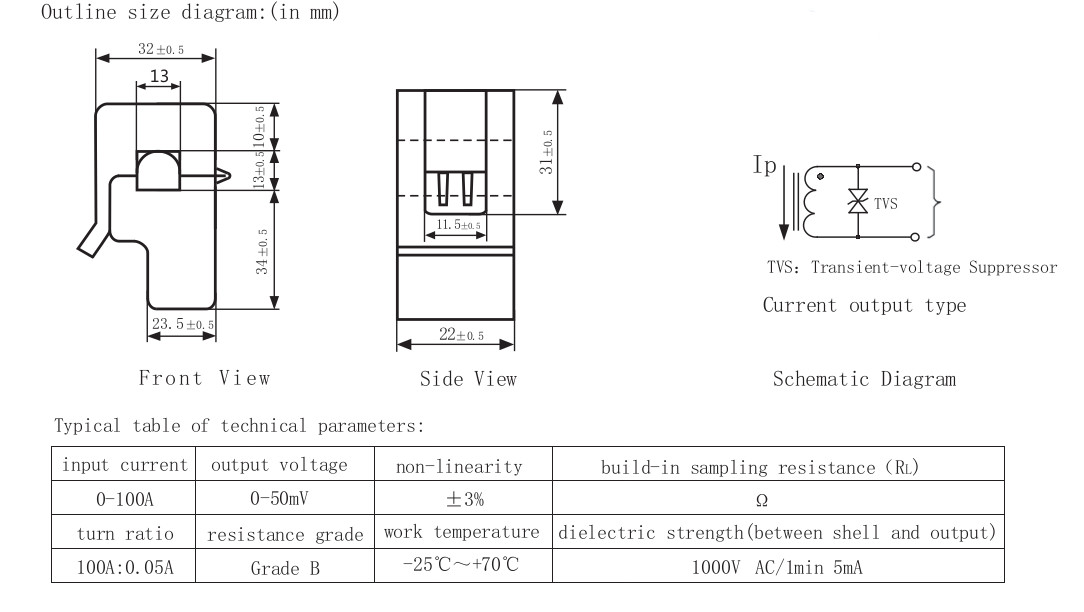

- SNS-CURRENT-CT013-100A drawing
- Introduction to current sensors
- Interfacing to Arduino
- Energy monitor with arduino
SOFTWARE
ER-SEL98100NI
