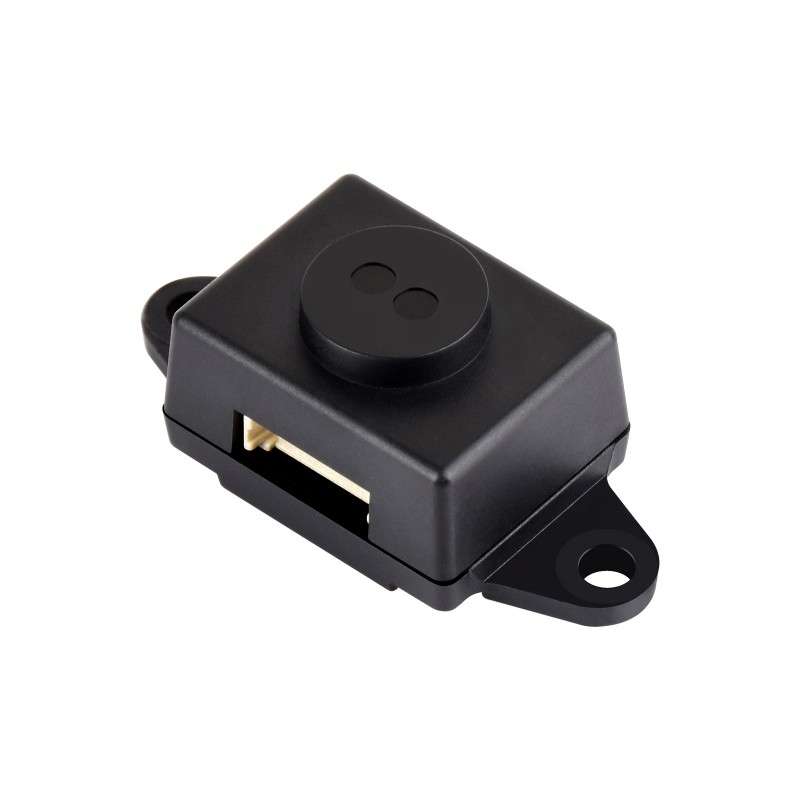

TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART  (WS-35106) 0.02m ~ 5m
      TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART  (WS-35106) 0.02m ~ 5m
      TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART  (WS-35106) 0.02m ~ 5m
      TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART  (WS-35106) 0.02m ~ 5m
      TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART  (WS-35106) 0.02m ~ 5m
      TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART  (WS-35106) 0.02m ~ 5m

      TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART (WS-35106) 0.02m ~ 5m

      WS-35106
      10,95 €

      8.90 € bez DPH

      TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART  (WS-35106) 0.02m ~ 5m

      Množstvo:
      OUT OF STOCK

      TOF (time of flight) Laser Range Sensor, Based On D-TOF Single-Point Laser Sensor, UART  (WS-35106) 0.02m ~ 5m

      TOF (time of flight) Laser Range Sensor, based on D-TOF Single-Point Laser Sensor, UART Communication Support

      TOF MINIF Laser Range Sensor

      long range | Short Blind Zone | stable/accurate/sensitive | indoor/outdoor

      Provides resources for Raspberry Pi, ESP32, Raspberry Pi Pico, Arduino, etc.

      TOF (time of flight) Laser Range Sensor, front view and features
      Version Options
      TOF (time of flight) Laser Range Sensor, front view

      TOF MINIF Range Sensor
      0.02m ~ 20m typical measurement range


      TOF (time of flight) Laser Range Sensor, front view

      TOF MINIF Range Sensor (B)
      0.02m ~ 5m typical measurement range

      Product overview

      The TOF MINIF Range Sensor is a laser ranging sensor based on Time-of-Flight (TOF) technology. Built-in controller and ranging algorithm, providing a measurement range of 0.02 ~ 5m/20m with an accuracy within ± (1% ~ 3%). Supports UART communication and features an ultra-narrow FOV for long-range measurement. Suitable for both indoor and outdoor environments, with ambient light resistance of up to approximately 100K Lux, enabling applications such as distance measurement, robotic obstacle avoidance, path planning, ceiling detection, and material level measurement.

      Specifications
      Module TOF MINIF Range Sensor TOF MINIF Range Sensor (B)
      Typical measuring range 0.02m ~ 20m 0.02m ~ 5m
      Typical measuring accuracy ± (1% ~ 3%) ± (1% ~ 3%)
      Field of view (FOV) 3°±0.5° 3°±0.5°
      Refresh rate 30Hz
      (Supports bulk customization for higher frequency, up to 90Hz)
      30Hz
      (Supports bulk customization for higher frequency, up to 90Hz)
      Ambient light tolerance 100K Lux 100K Lux
      Operating temperature -20°C ~ +70°C -20°C ~ +70°C
      Operating humidity 35% ~ 80%RH 35% ~ 80%RH
      Laser Safety Class LASER CLASS 1 LASER CLASS 1
      Wavelength 940nm 940nm
      Communication interface UART UART
      Baud rate 115.2Kbps
      (Supports bulk customization for higher rate, up to 2Mbps)
      115.2Kbps
      Power supply 4V ~ 5.6V 4V ~ 5.6V
      Communication Level 3.3V 3.3V
      Power consumption 170mW 100mW ~ 140mW
      Weight 3.6g 3.6g
      Case Material PC PC
      Storage temperature -40℃ ~+80℃ -40℃ ~+80℃
      Dimensions
      (L × W × H)
      35.5 x 16.5 x 13.5 (mm) 35.5 × 16.2 × 13.5 (mm)
      Cost effective solution

      long-range low-cost ranging module with a Measurement Range of 0.02m ~ 5m/20m,
      high stability, high accuracy, high sensitivity ranging

      TOF (time of flight) Laser Range Sensor, long range low cost ranging module
      UART communication support
      TOF (time of flight) Laser Range Sensor, interfaces and mounting holes
      applications
      TOF (time of flight) Laser Range Sensor, applications
      TOF (time of flight) Laser Range Sensor, Hydraulic Stacking Detection applications

      Hydraulic Stacking Detection


      Hardware connection

      connecting with Raspberry Pi board

      TOF (time of flight) Laser Range Sensor, connecting with Raspberry Pi

      *for reference only, please refer to the package content for detailed part list.


      Outline Dimensions
      TOF (time of flight) Laser Range Sensor, outline dimensions

      Balenie Obsahuje / Package Content

      1. TOF MINIF Range Sensor x1
      2. MX1.25 4PIN cable 100mm x1
