PCIe TO 2.5G ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play (WS-33042)
WS-33042
11,98 €
9.74 € bez DPH
PCIe TO 2.5G ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play (WS-33042)
PCIe TO 2.5G ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play (WS-33042)

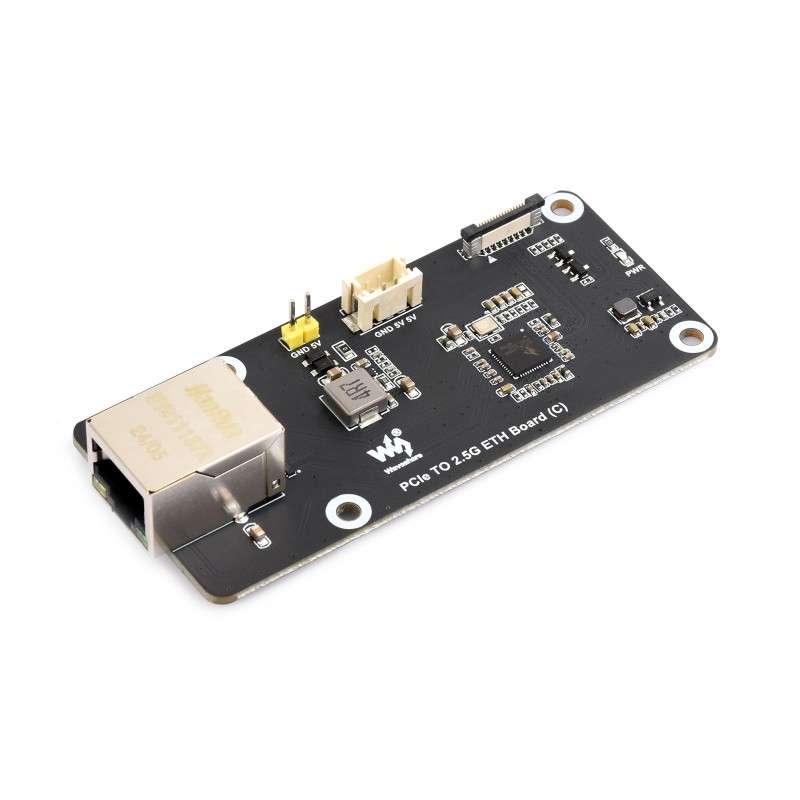

- Part No.: PCIe TO 2.5G ETH Board (C)
PCIe TO 2.5G ETH Board (C) For Raspberry Pi 5, Supports Raspberry Pi OS, Driver-Free, Plug And Play
PCIe TO 2.5G ETH Board (C)
Designed for Raspberry Pi 5
Supports Raspberry Pi OS, Driver-free, Plug and Play
Specifications
| CONTROLLER | RTL8125 |
|---|---|
| Ethernet Port | RJ45 2.5G Ethernet |
| PCIe Interface | PCIe x1 GEN2 |
| Power supply | 5V |
| Network standard | 10/100/1000/2500Mbps |
| Indicator status | green indicator: keeps blinking when communication yellow indicator: lights up when connected |
Connecting to PI5 via 16PIN Cable
Based on 16PIN PCIe Interface of Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list
High-performance controller
Onboard original high-performance RTL8125 chip
Supports Raspberry Pi OS, Driver-free, Plug and Play
Comes with Transparent acrylic
mounting plate
mounting plate
Adopts side-mounting solution to save space above the Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list
Power Supply Methods
power supply via PCIe cable by default
* for reference only, please refer to the Package Content for detailed part list
Outline dimensions
Balenie Obsahuje / Package Content
- PCIe TO 2.5G ETH Board (C) x1
- Transparent acrylic mounting plate x1
- PH2.0 3PIN cable ~5cm x1
- PCIe-Cable-50mm x1
- Screws pack x1
WS-33042
