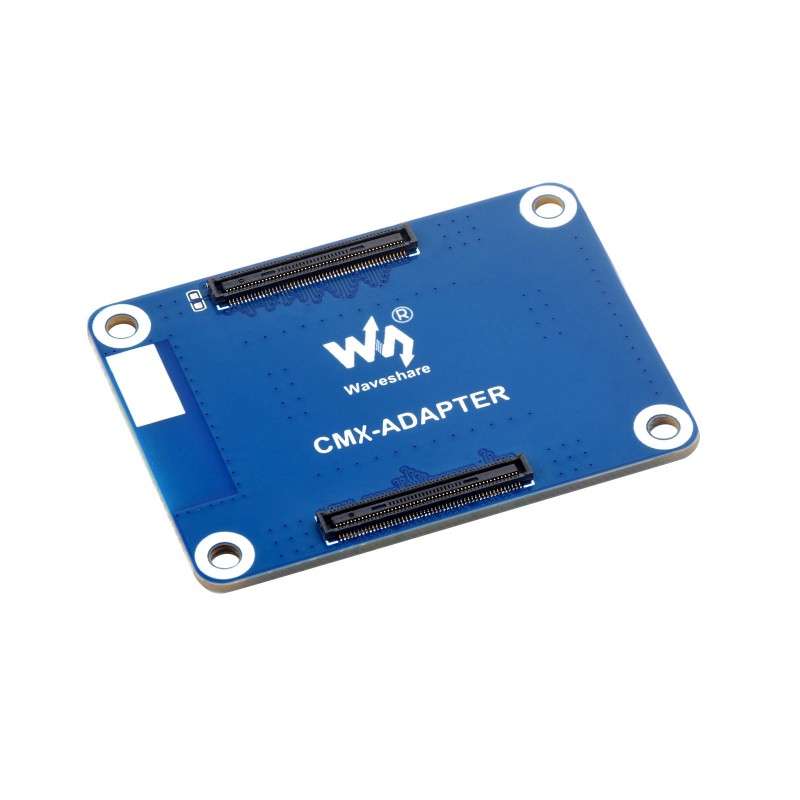

Interface Protection Adapter Board for Raspberry Pi Compute Module CM4/CM5 Socket (WS-29616)

Interface Protection Adapter Board for Raspberry Pi Compute Module series, Provides Physical Protection for Frequent Plugging and Unplugging of CM4 / CM5 Socket

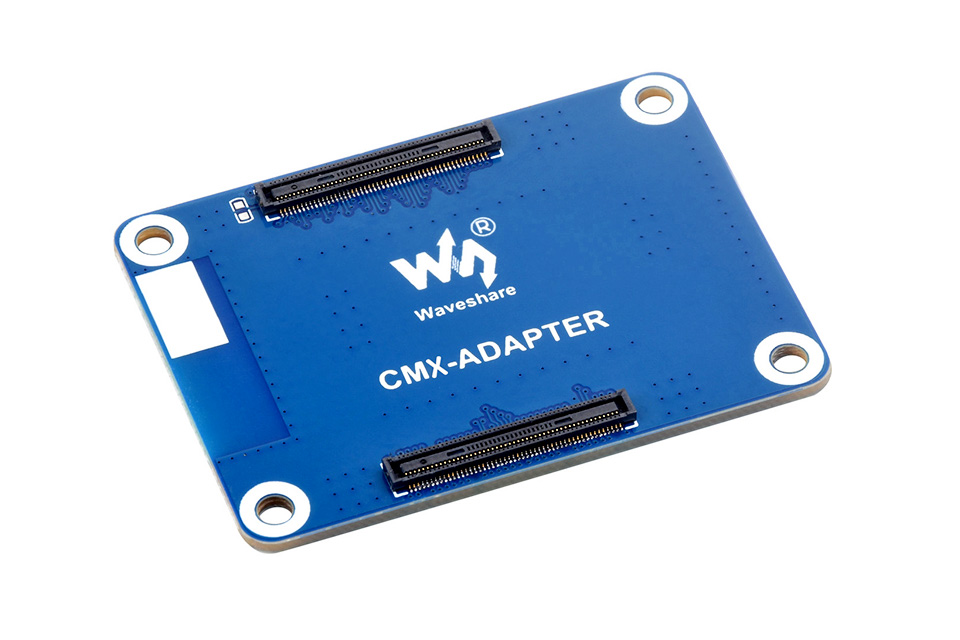

Interface Protection Adapter Board for Raspberry Pi CM4 / CM5

Based on Raspberry Pi CM4 / CM5

Onboard Standard CM4 / CM5 Connectors, Supports access to the Lite / EMMC series of CM4 / CM5 and connecting to corresponding baseboard or expansion board

Physical Protection for Frequent Plugging and Unplugging

Prevents damage to the CM4 / CM5 socket from frequent physical plugging and unplugging, suitable for applications that require frequent connections of CM4 / CM5

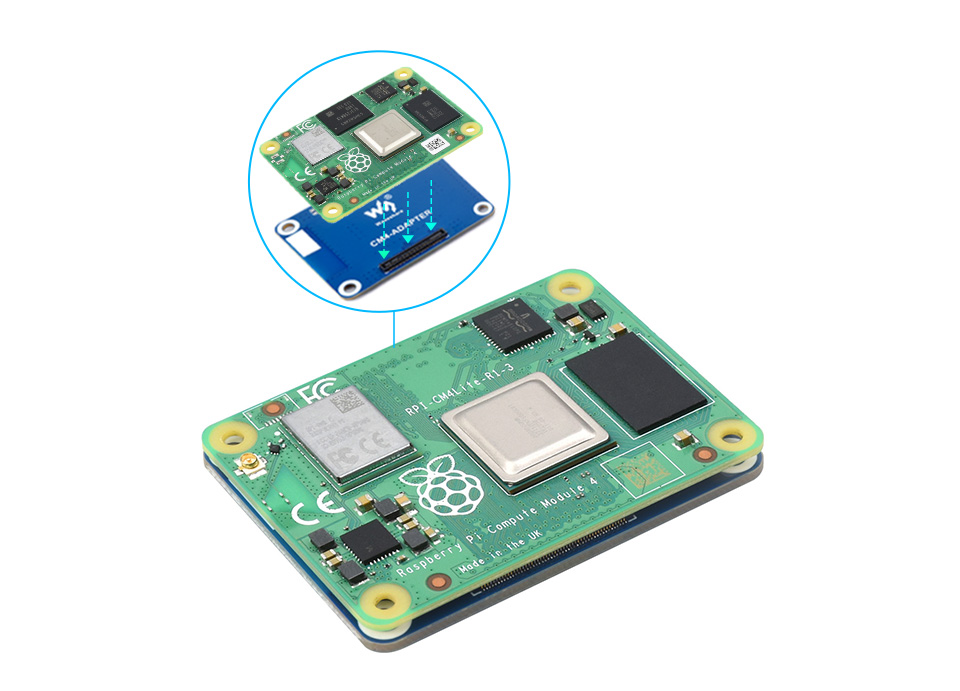

Connecting with Compute Module 4



Connecting with Compute Module 5

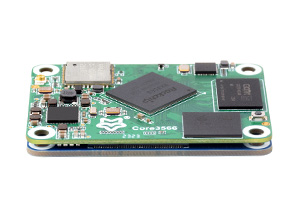

Connecting with Luckfox Core3566 Module

Easy to Install

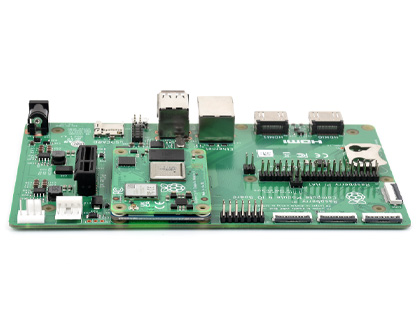

Connecting the Compute Module 4 to Compute Module 4 IO Board via CMX-ADAPTER

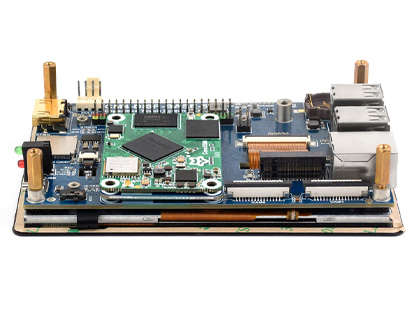

Connecting the Luckfox Core3566 Module to Touch screen expansion board via CMX-ADAPTER

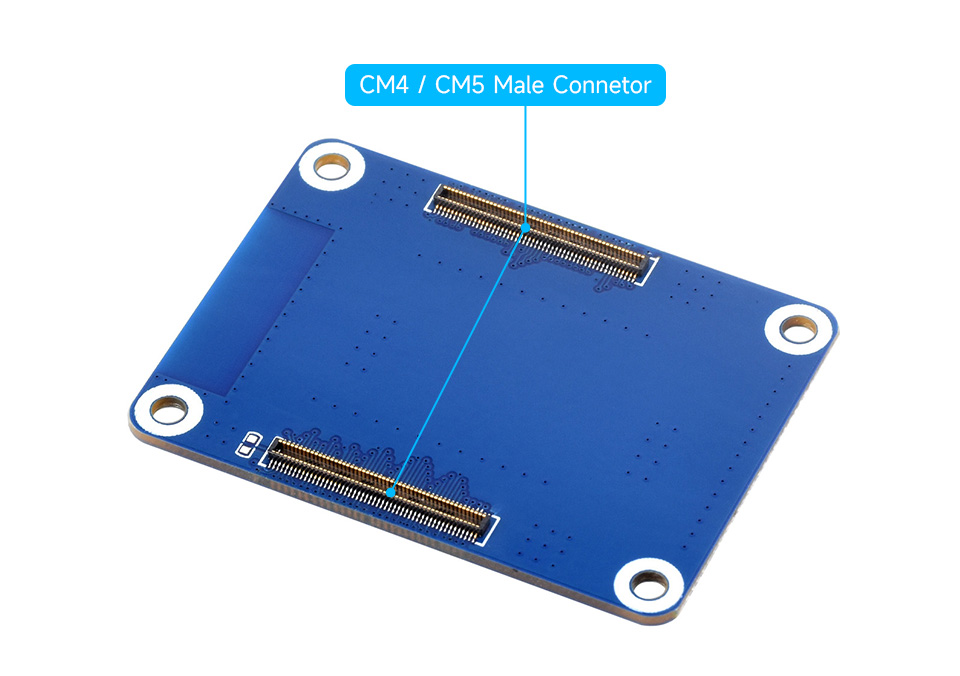

Interface Introduction

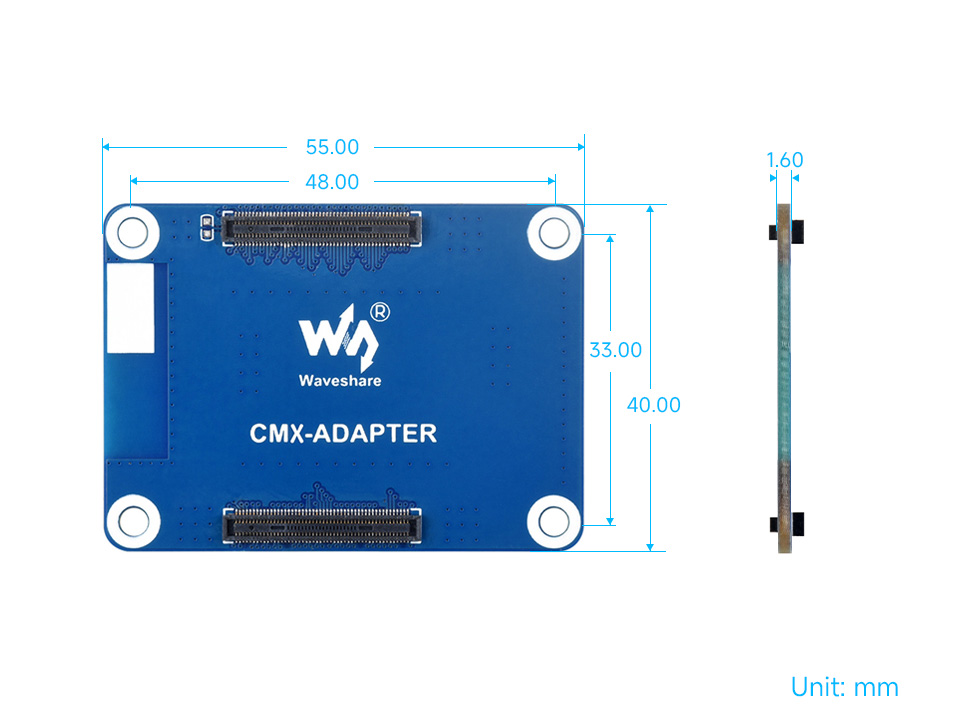

Outline dimensions

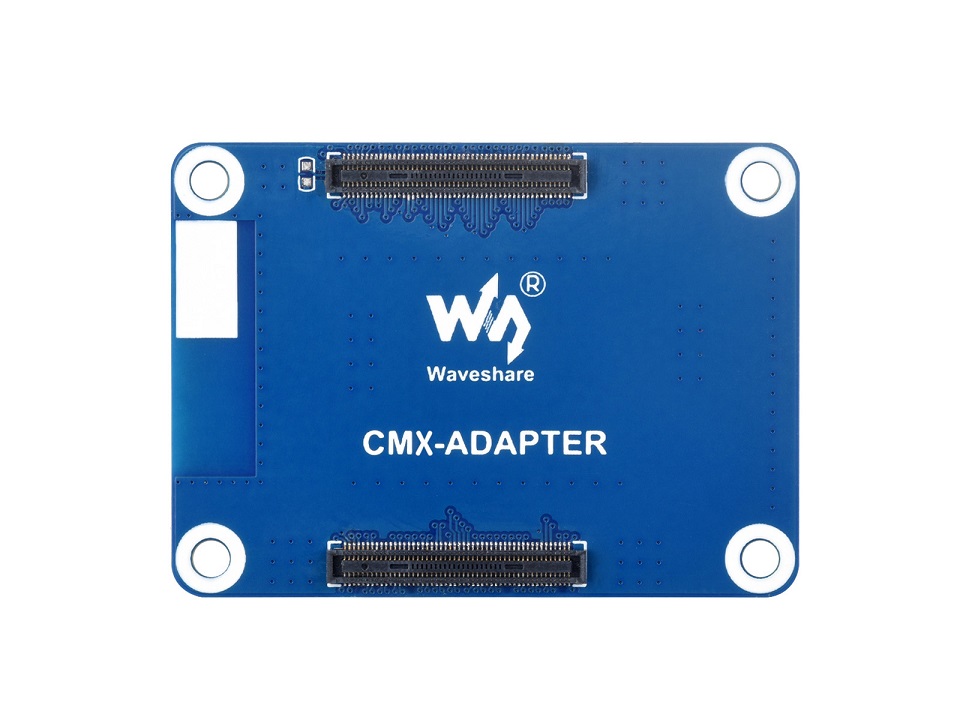

Balanie Obsahuje / Package Content

CMX-ADAPTER x1
