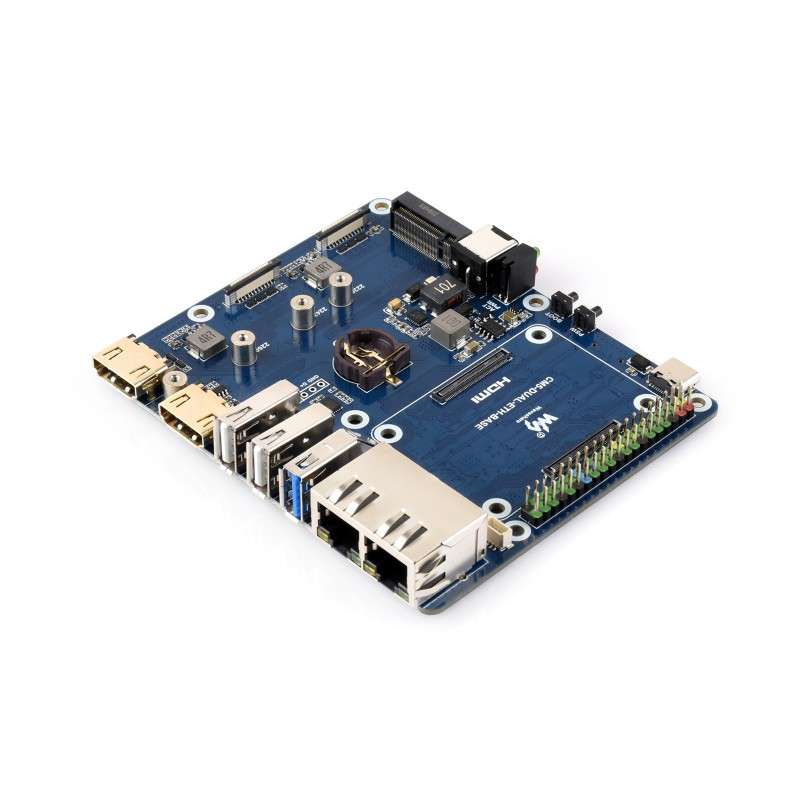

Gigabit / 2.5G Dual Ethernet Base Board Raspberry Pi CM5. Dual RJ45 Ethernet, Dual 4K Display Dual MIPI (WS-32176)
WS-32176
66,42 €
54.00 € bez DPH
Gigabit / 2.5G Dual Ethernet Base Board Raspberry Pi CM5. Dual RJ45 Ethernet, Dual 4K Display Dual MIPI (WS-32176)
Gigabit / 2.5G Dual Ethernet Base Board Raspberry Pi CM5. Dual RJ45 Ethernet, Dual 4K Display Dual MIPI (WS-32176)
Gigabit / 2.5G Dual Ethernet Base Board For Raspberry Pi CM5. Dual RJ45 Ethernet Ports, Supports Dual 4K Display Outputs And Dual MIPI Interfaces, Onboard 40Pin GPIO Header
Dual Ethernet Base Board for CM5
Designed for Raspberry Pi Compute Module 5
Specifications
| CM5 socket | Suitable for all variants of Compute Module 5 |
|---|---|
| Networking | 1000M Ethernet RJ45 port 2500M Ethernet RJ45 port |
| Connector | Raspberry Pi 40PIN GPIO Header |
| USB | USB 3.2 Gen1 × 1 USB 2.0 × 2 |
| MIPI | 4-lane MIPI interface × 2 (22PIN 0.5mm FFC connector) |
| Video | HDMI port × 2, supports dual 4K display outputs |
| M.2 | M.2 M KEY (PCIe Gen2/3 x 1) |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Fan Header | 5V, 4PIN JST-SH PWM fan connector |
| Others | Onboard EEPROM and Encryption chip |
| Power Input | 7V~36V wide voltage range |
| Dimensions | the base board: 109.0 × 91.5 (mm) |
