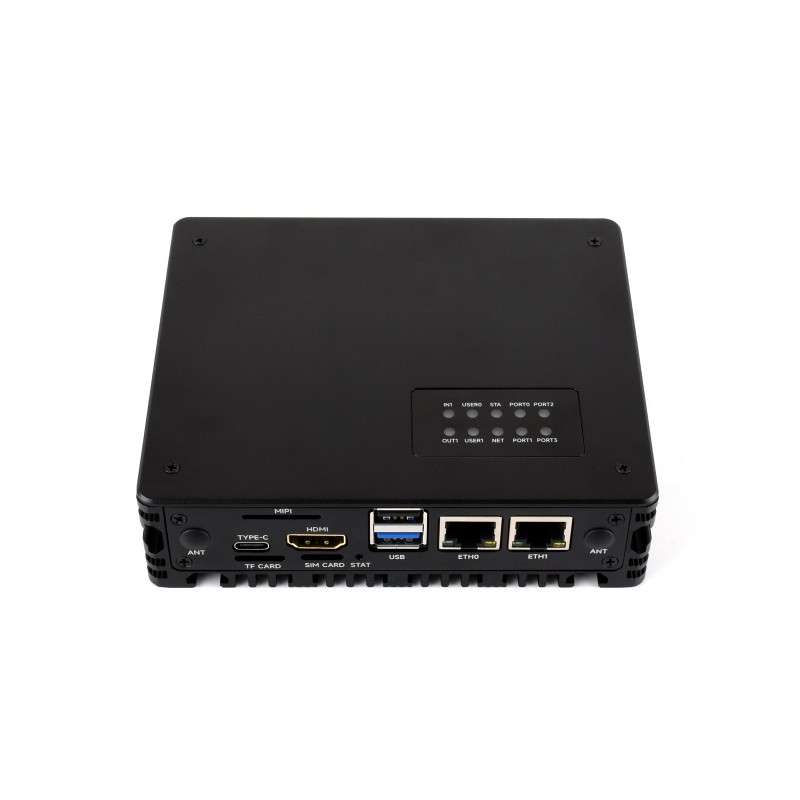

Gigabit/2.5G Dual Ethernet Raspberry Pi CM5, RS485 Industrial 4G/5G Module And 4K Display Output (WS-34403)
WS-34403
85,98 €
69.90 € bez DPH
Gigabit/2.5G Dual Ethernet Raspberry Pi CM5, RS485 Industrial 4G/5G Module And 4K Display Output (WS-34403)
Gigabit/2.5G Dual Ethernet Raspberry Pi CM5, RS485 Industrial 4G/5G Module And 4K Display Output (WS-34403)
- Part No.:CM5-ETH-RS485-4G-BOX (EU)
- the Base Board + Metal Case + Power Supply
Gigabit/2.5G Dual Ethernet Multi-Function Expansion Board based on Raspberry Pi CM5 (NOT included), Supports RS485 industrial communication, 4G / 5G module and 4K Display Output, Suitable for all variants of Compute Module 5
Dual Ethernet 4G Multi-Function Expansion
Board based on Raspberry Pi CM5
Board based on Raspberry Pi CM5
Designed for Raspberry Pi Compute Module 5
* the Raspberry Pi CM5 is NOT included.
Version Options
CM5-ETH-RS485-4G-BASE
the base board only
CM5-ETH-RS485-4G-BOX
the base board + metal case + power supply
* please refer to the package content for the detailed part list.
Specifications
| CM5 socket | Suitable for all variants of Compute Module 5 |
|---|---|
| Networking | 1000M Ethernet RJ45 port × 1 2500M Ethernet RJ45 port × 1 |
| USB | USB 2.0 port (Type-C) × 1 |
| USB 2.0 port (Type-A) × 1 USB 3.2 Gen1 port (Type-A) × 1 |
|
| Video | HDMI port × 1, supports 4K display output |
| M.2 | M.2 M KEY (PCIe Gen2/3 × 1, supports 2230 / 2242 / 2280 NVMe or AI module) |
| M.2 B KEY, supports connecting 4G / 5G communication module | |
| Storage | TF card socket for Compute Module 5 Lite (without eMMC) variants |
| Serial Interface | RS485 × 4 |
| Digital Input | 1 × digital input (input voltage: 5V ~ 36V) |
| Relay | Contact rating: ≤ 10A 250V AC or ≤ 10A 30V DC |
| Fan header | 5V, 4PIN JST-SH PWM fan header |
| Buzzer | 1-ch controllable buzzer |
| Other | Onboard encryption chip |
| Power Input | 7V ~ 36V wide voltage range (screw terminal + jack), 5V 5A Type-C port |
| Dimensions | 132.50 × 112.20 × 34.50 (mm) |
What's the differences
| CM5 Base Board | Interface count and specifications | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PoE | Gigabit ETH |
40PIN GPIO |
PCIe | USB① | MIPI | HDMI | RTC | Fan Header② |
Power Input |
Features | ||
 NANO A |
√ | 3.0×1 | ×2 | SH1.0 | √ | 5V | CM5 sized | |||||
 NANO B |
×1 | √ | 16PIN PCIe | 3.0×1 | ×2 | √ | SH1.0 | √ | 5V | CM5 sized | ||
 mini Base A |
×1 | √ | 16PIN PCIe | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | mini size | ||
 mini Base B |
×1 | √ | M.2 M KEY | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | mini size, onboard EEPROM and encryption chip | ||
 Mini Dual Gigabit |
×2 | √ | 3.0×1 | SH1.0 | √ | 5V | dual ETH | |||||
 Dual ETH A |
1G ×1 2.5G ×1 |
√ | M.2 M KEY | 3.0×1 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 7V~36V | dual ETH, onboard EEPROM and Encryption chip | ||
 Dual ETH B |
1G ×1 2.5G ×1 |
√ | M.2 M KEY | 3.0×1 2.0×1 |
×2 | ×1 | SH1.0 | √ | 5V | dual ETH ports | ||
 Dual ETH 4G/5G |
1G ×1 2.5G ×1 |
√ | M.2 M KEY | 3.0×2 | ×2 | ×2 | ML/CR1220 | √ | 7V~36V | dual ETH and 4G/5G support | ||
 PoE Base |
√ | ×1 | √ | M.2 M KEY | 3.0×2 2.0×2 |
×2 | ×2 | ML/CR1220 | √ | 5V | USB×4 | |
 Raspberry Pi official |
③ | ×1 | √ | M.2 M KEY | 3.0×2 | ×2 | ×2 | ML/CR1220 | √ | 5V | Official IO base board | |
 IPCBOX-CM5 |
1G ×1 2.5G ×1 |
M.2 M KEY | 3.0×1 2.0×3 |
×1 | SH1.0 | √ | 7V~36V | dual ETH, 4G/5G support, RS485/RS232, Encryption chip, EEPROM, CAN, digital inputs, digital outputs, audio, an buzzer |
||||
 CM5 Dual ETH Multi-function |
1G ×1 2.5G ×1 |
M.2 M KEY | 3.0×1 2.0×2 |
×2 | ×1 | SH1.0 | √ | 7V~36V | dual ETH, 4G/5G support, RS485, Encryption chip, digital input, relay, and buzzer |
|||
| Note | ① USB 3.0 is equivalent to USB 3.2 Gen1. ② Unless otherwise specified, the Fan header usually is JST-SH type connector. ③ There's PoE header only on the Raspberry Pi official IO board without PoE circuit, which means additional PoE module is required for the official IO board to enable PoE feature. Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). |
|||||||||||
Connecting with Compute Module 5
standard CM5 socket suitable for Compute Module 5 Lite / eMMC series module
* for reference only, please refer to the package content for detailed part list
4G / 5G module compatibility
compatible with communication modules with M.2 B KEY interface
* An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8260G-M2, and SIM8262E-M2.
Supports connecting to M.2 NVMe Drive
Faster reading/writing speed compared to the TF card slot of Raspberry Pi, greatly improving reading/writing efficiency of the system or files, Supports booting Pi5 from NVME Solid State Drive
* for reference only, please refer to the package content for detailed part list
Applicable M.2 drive sizes
NVMe Drive Slot Support
* Only supports the NVMe Protocol Solid State Drives.
More rich interfaces
Features multiple interfaces including ETH / MIPI / HDMI / TF Card Slot / USB / M.2 B KEY / M KEY, easy to use
Precise cut-out with clear label
each cut-out is completely aligned with the connector
Heat Dissipation Design
Aluminum alloy case enables large-area heat conduction and dissipation, combined with heat sink fins, better heat dissipation
supports Rail mounting
Reserved Rail-mount buckle mounting holes for more convenient installation
* for reference only, the rail bracket is NOT included, please purchase separately.
What's On Board
- CM5 socket
suitable for all variants of Compute Module 5 - Nano SIM card slot
- TF card slot
for connecting a TF card with pre-burnt system (Lite variant ONLY) - 4PIN JST-SH PWM FAN header
for connecting 5V cooling fan - Programming
used for eMMC burning or USB OTG - HDMI port
supports 4K output - Button & indicator expansion header
- USB ports
1 × standard USB 2.0 port, 1 × USB 3.2 Gen1 Type-A port with up to 5Gbps rate - 1000M Ethernet RJ45 port
supports 10M / 100M / 1000M network connections - 2500M Ethernet RJ45 port
supports 10M / 100M / 1000M / 2500M network connections - Indicators
Status indicators for each interface, adapting 2 × additional user-defined indicator
- M.2 M KEY
supports 2242 / 2230 / 2280 NVMe NVMe Solid State Drives or AI modules - M.2 B KEY
supports connecting 4G/5G communication module - Buzzer
- DC power supply jack
supports DC 7V ~ 36V power supply (please do not connect power via the screw terminal at the same time) - DC power screw terminal
supports DC 7V ~ 36V power supply (please do not connect power via the DC power supply jack at the same time) - RS485 screw terminals
- Digital input screw terminal
Input voltage: 5V ~ 36V - Relay screw terminal
Contact rating: ≤ 10A 250V AC or ≤ 10A 30V DC - RTC Batt header
for connecting with compatible RTC Batt to power the RTC chip - Encryption chip
- Dual MIPI interfaces
for connecting to DSI display or CSI camera
Application Example
Suitable for Raspberry Pi applications in remote communication or other industrial situations
* for reference only, the display is NOT included, please purchase separately.
How to install
Outline dimensions
About Compute Module 5
Newly upgraded, more powerful
- Upgraded processor BCM2712, quad-core Cortex-A76 64-bit SoC, more powerful performance
- More options for RAM (2GB / 4GB / 8GB / 16GB)
- More options for eMMC Flash (0GB (Lite) / 8GB / 16GB / 32GB / 64GB)
- Faster eMMC Flash storage, up to 200 Mbps data rate
- Optional for certified radio module, supports either PCB trace antenna or external antenna, more suitable for industrial applications
- Adopts B to B connectors, most compatible with Compute Module 4
- Onboard Gigabit Ethernet PHY supporting IEEE1588, suitable for network applications
- Onboard PCIe Gen 2 x1 interface, allows connecting more useful modules
Balenie Obsahuje / Package Content
CM5-ETH-RS485-4G-BOX
- Metal case (top cover + back cover) and dual side panels x1
- CM5-ETH-RS485-4G-BASE x1
- Rail-mount buckle (20mm × 76mm) x1
- Label x1
- Pink thermal tape x5
- PC insulating sheet x1
- Screwdriver x1
- Screws pack x1
- 12V 4A power x1
