Raspberry Pi Accessories Pack A (WS-9191) Waveshare
WS-9191 (RPi Acce A)
Raspberry Pi Accessories Pack A (WS-9191) Waveshare
Raspberry Pi Accessories Pack A (WS-9191) Waveshare
Description
Accessories Pack (type A) for Raspberry Pi, including Expansion Board DVK512, LCD, Modules, and Cables
Note: Raspberry Pi is NOT included.
Overview
An accessories Pack (type A) to be used with Raspberry Pi. It consists of expansion board DVK512, LCD, various modules, and other accessories like wires and cables, etc.
Supported Pi
- Raspberry Pi 1 Model A+
- Raspberry Pi 1 Model B+
- Raspberry Pi 2 Model B
- Raspberry Pi 3 Model B
What's on the DVK512
- Pinheaders for connecting with the RPi
- UART interface: easily connects to UART modules such as RS232, RS485, USB TO UART, etc.
- 8I/Os interface: easily connects to modules controlled by I/Os, such as 8 Push Buttons, Logic Level Converter, Mix Board, etc.
- SPI interface: easily connects to SPI modules such as AT45DBXX Dataflash, L3G4200D Board, etc.
- I2C interface: easily connects to I2C modules such as PCF8574 Expansion Board, PCF8563 RTC Board, LSM303DLHC Board, etc.
- Character LCD interface: for connecting character LCDs like LCD1602
- USB connector: USB TO UART, supported by onboard converter CP2102
- Power indicator
- User LEDs
- User Keys
- Potentiometer: for LCD1602 contrast adjustment
- RTC battery holder
- PCF8563: onboard RTC chip
- 32.768K crystal: RTC crystal
- CP2102: onboard USB TO UART chip, for debugging
- CP2102 jumper
- RTC jumper
- User LEDs jumper
- User Keys jumper
For jumpers above:
- short the jumper to connect to I/Os used in example code
- open the jumper to connect to other custom pins via jumper wires
Package :
- DVK512 x 1
- 3.5inch RPi LCD (A) × 1
- PCF8591 AD DA Board x 1

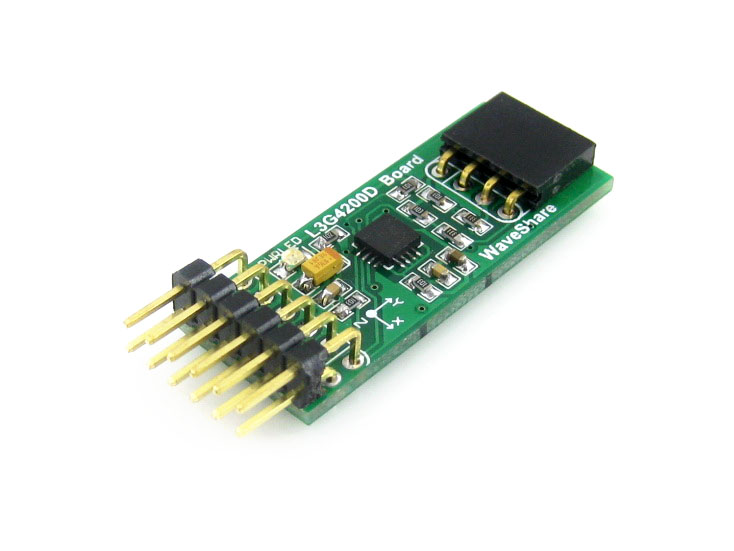

- L3G4200D Board x 1
- LSM303DLHC Board x 1

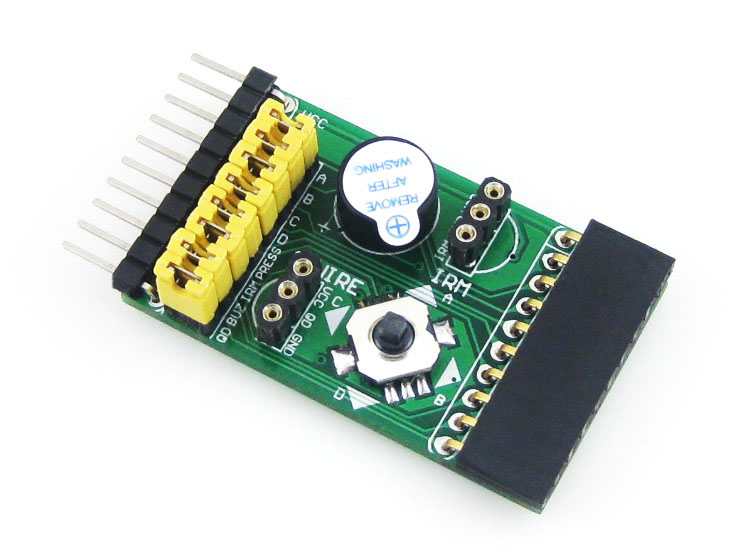

- Mix Board x 1

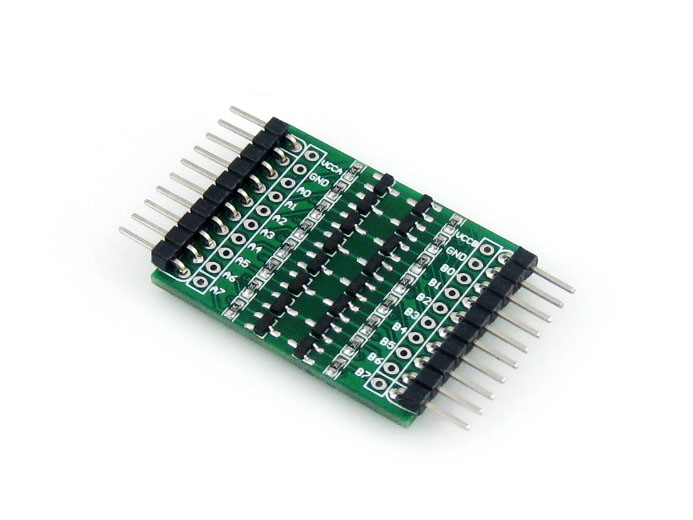

- Logic Level Converter x 1
- Infrared Remote Controller x 1

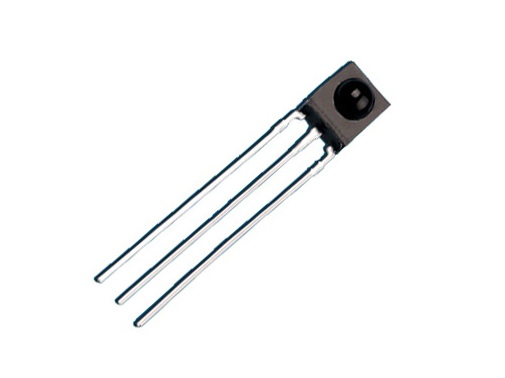

- LFN0038K (Infrared Receiver) x 1
- DS18B20 x 1
- USB type A plug to mini-B plug cable x 1
- 4-pin 2-pin wires pack x 1
- Touch pen x 1
- RPi screws pack (4pcs) x 1
DVK512 Photos
Development Resources
The User Guide CD includes development resources listed as follow:
- User manual
- Schematic (PDF)
- Examples in C (Linux API source code)
- Development documentations (Raspbian configuration, C library installation)
- Raspbian (the configured system image for RPi)
Examples in C:
- LED (I/Os)
- Logic Level Converter (I/Os)
- JOYSTICK (I/Os)
- Key (I/Os)
- BUZZER (PWM)
- DS18B20 (1-WIRE)
- IRM (I/Os)
- LCD1602 (I/Os)
- PCF8563 (RTC)
- PCF8591 (AD/DA)
- LSM303DLHC (I2C)
- L3G4200D (SPI)
- CP2102 (UART)
- GPS (UART)
Download: www.waveshare.com/wiki/RPi_Acce_A
Optional Items
The following items can also be used with this product, drivers provided :
Raspberry Pi 3 Selection Guide
| Package Contents | Products | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Item | Description | Acce. A | Acce. B | Package B | Acce. C | Package C | Acce. D | Package D | Acce. E | Package E | Acce. F | Package F | Acce. α | Package α |
| RPi3 B | Raspberry Pi 3 Model B | √ | √ | √ | √ | √ | √ | |||||||
| Micro SD Card 16GB | 16GB Miro SD Card, class 10 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| 5V 3A Power Adapter | Provides 5V 3A power supply, micro USB plug | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |
| Pioneer600 | Expansion Board, provides expansion interfaces and onboard components | √ | √ | |||||||||||
| DS18B20 | Temperature sensor | √ | √ | |||||||||||
| Infrared Remote Controller | IR control | √ | √ | √ | √ | |||||||||
| USB Camera 0307 | USB camera | √ | √ | |||||||||||
| Mini Wireless Keyboard | Mini wireless keyboard with touchpad | √ | √ | |||||||||||
| HDMI to VGA Convertor | For working with VGA monitors | √ | √ | |||||||||||
| ARPI600 | Raspberry Pi to Arduino | √ | √ | |||||||||||
| Sensors Pack | Various sensors in one pack | √ | √ | |||||||||||
| 5inch HDMI LCD (B) | 5inch HDMI interface touch screen LCD | √ | √ | |||||||||||
| Bicolor Case for 5inch LCD Type B | Case and holder | √ | √ | |||||||||||
| 7inch HDMI LCD (C) | 7inch HDMI interface touch screen LCD, high-definition | √ | √ | |||||||||||
| Bicolor Case for 7inch LCD | Case and holder | √ | √ | |||||||||||
| RPi Camera (B) | Raspberry Pi camera, adjustable focus | √ | √ | |||||||||||
| AlphaBot | Robotic platform (line tracking, obstacle avoidance, speed measuring) | √ | √ | |||||||||||
| SG90 servo | servo and 2 DOF pan head | √ | √ | |||||||||||
| DVK512 | Expansion Board, provides expansion interfaces and onboard components | √ | ||||||||||||
| 3.5inch RPi LCD (A) | 3.5inch touch screen LCD | √ | ||||||||||||
| PCF8591 AD DA Board | 8-bit AD/DA module | √ | ||||||||||||
| L3G4200D Board | Angular rate sensor | √ | ||||||||||||
| LSM303DLHC Board | e-compass | √ | ||||||||||||
| Mix Board | Buzzer, Joystick, Infrared Receiver, Temperature Sensor | √ | ||||||||||||
| Logic Level Converter | 8ch Logic Level Bus Transceiver | √ | ||||||||||||
