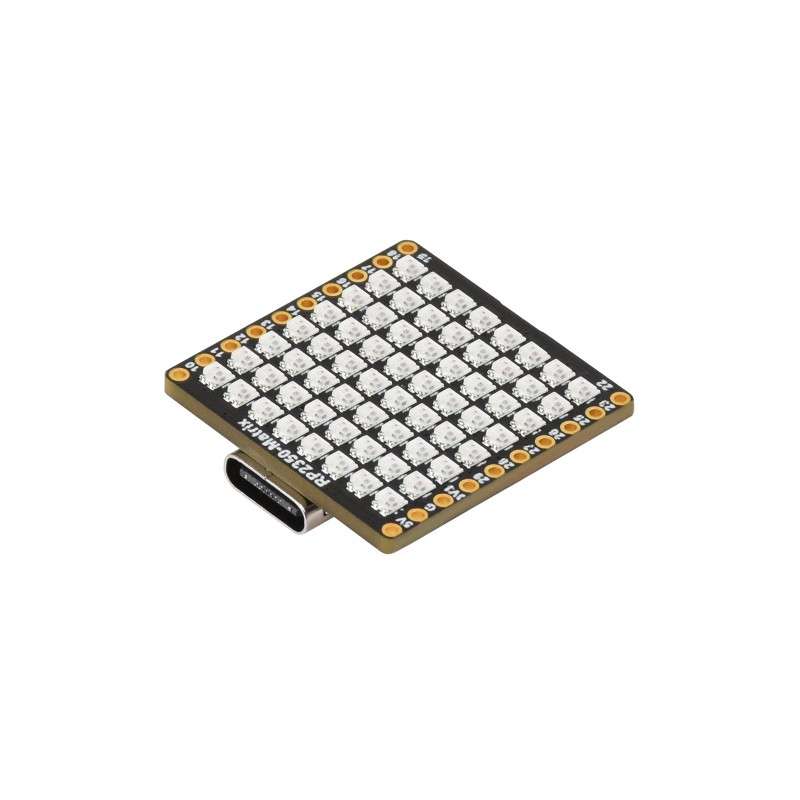

RP2350-Matrix Microcontroller Dev.Board, 6-Axis Sensor, 8×8 RGB LED Matrix For Colorful Lighting Display (WS-32225)
WS-32225
12,18 €
9.90 € bez DPH
RP2350-Matrix Microcontroller Dev.Board, 6-Axis Sensor, 8×8 RGB LED Matrix For Colorful Lighting Display (WS-32225)
RP2350-Matrix Microcontroller Dev.Board, 6-Axis Sensor, 8×8 RGB LED Matrix For Colorful Lighting Display (WS-32225)
RP2350-Matrix Microcontroller Development Board, Dual-core And Dual-architecture Design, Onboard 6-Axis Sensor And 8 × 8 RGB LED Matrix For Colorful Lighting Display
RP2350-Matrix development board
Based on RP2350, adapting 25 × multi-function GPIO pins
specifications
- RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
- Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
- Built-in 520KB of SRAM and 16MB of onboard Flash memory
- Type-C port, easier to use
- Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope)
- Onboard 8 × 8 RGB LED matrix for colorful lighting display
- Adapting Dout pin for extending RGB matrix
- USB 1.1 with device and host support
- Low-power sleep and dormant modes
- Drag-and-drop programming using mass storage over USB
- 25 × multi-function GPIO pins
- 1 × HSTX, 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC and 16 × controllable PWM channels
- Accurate clock and timer on-chip
- Temperature sensor
- Accelerated floating-point libraries on-chip
- 12 × Programmable I/O (PIO) state machines for custom peripheral support
QMI8658 gyroscope sensor
Onboard QMI8658 6-axis IMU for tilt angle and speed measurement
Onboard 8 × 8 RGB LED Matrix
For colorful lighting display
dual-core, dual-architecture
The unique dual-core, dual-architecture capability of RP2350A allows users to choose between a pair of industry-standard Arm Cortex-M33 cores, and a pair of open-hardware Hazard3 cores, giving developers a chance to experiment with the RISC-V architecture in a stable, well-supported environment
Support C/C++, MicroPython, Arduino IDE
What's On Board
- RP2350A
Dual-core and dual-architecture design, up to 150 MHz operating frequency - 16MB Flash
- QMI8658
QST 6-axis sensor (3-axis accelerometer, 3-axis gyroscope) - Dout pin
for extending RGB matrix - RESET button
- USB Type-C connector
for programming, USB 1.1 with device and host support - BOOT button
press it when resetting to enter download mode - ME6217C33M5G
Low dropout regulator, 800mA output (Max.) - 8 × 8 RGB LED Matrix
Pin definition
outline dimensions
Balenie Obsahuje / Package Content
RP2350-Matrix x 1
WS-32225
