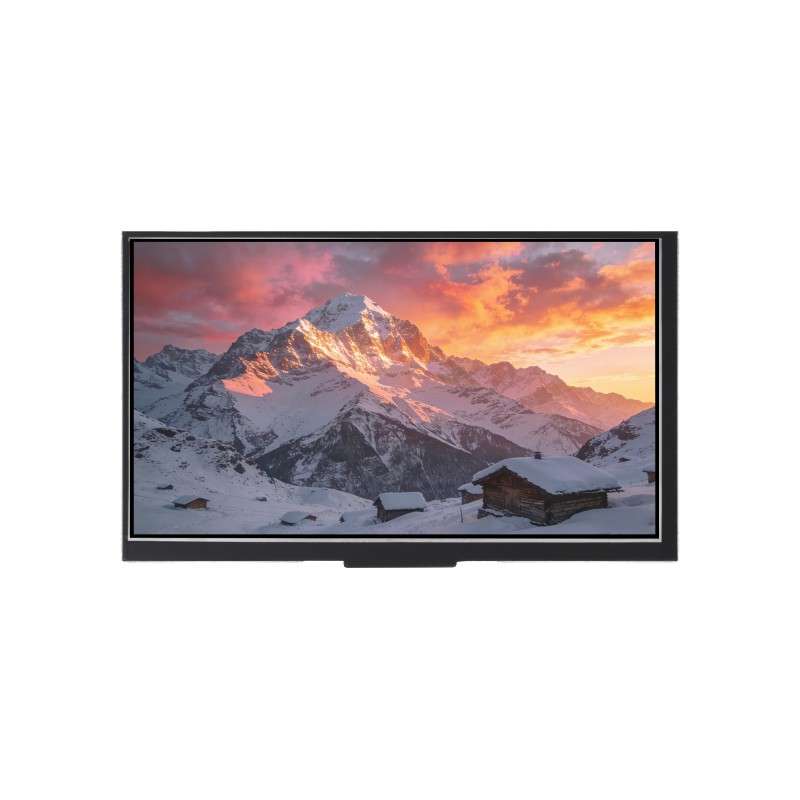

This product is a high-performance, highly integrated microcontroller development board designed by Waveshare. It integrates high-capacity Flash and PSRAM. Onboard 7inch capacitive LCD display, TF card slot, PIO-USB, and so on, combined with various communication interfaces for easy development and integration into products.

• RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
• Built in 520KB Static RAM, with onboard 16MB Flash and 2MB PSRAM
• Type-C port for easier use
• Onboard 7inch capacitive touch LCD, 800 × 480 resolution, 65K color
• Supports 5-point capacitive touch control via I2C interface, with interrupt support (for touch version only)
• Onboard Sensor, CAN, RS485, I2C and UART interfaces, etc.
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Accurate clock and timer on-chip
• Built-in temperature sensor for real-time monitoring of chip temperature
• 12 × programmable I/O (PIO) state machines for custom peripheral support
