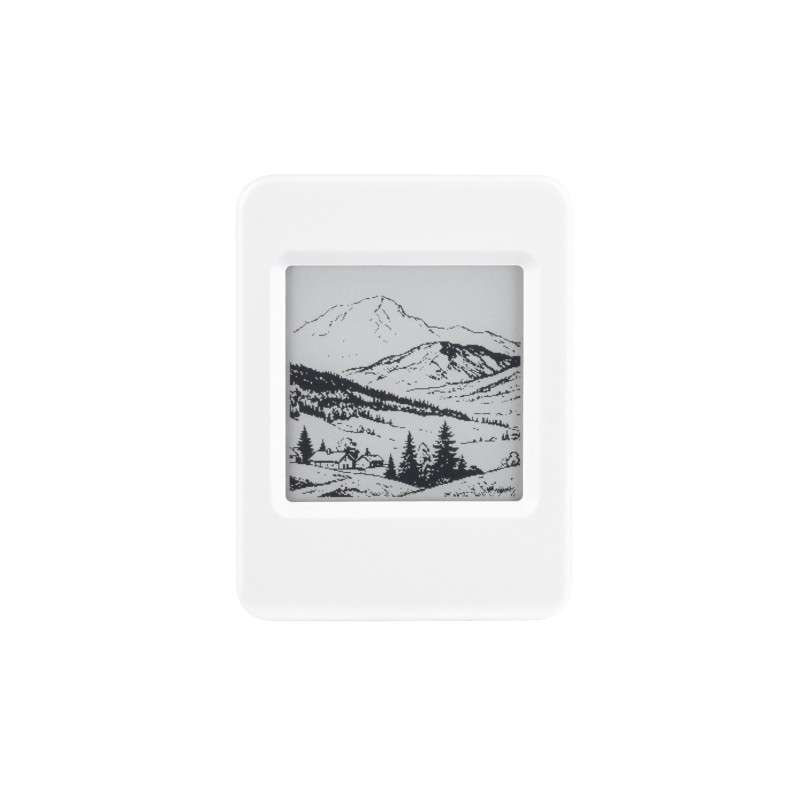

The product is a high-performance, highly integrated microcontroller development board designed by Waveshare. It integrates high-capacity Flash and onboard 1.54inch e-paper display, features ultra-low power consumption and ambient light readability, suitable for portable devices and long-Batt-life scenarios. Integrated with an RTC chip, SHTC3 temperature and humidity sensor, TF card slot, low-power audio codec chip circuit, and Lithium Batt recharge and discharge management circuit. Reserved interfaces including USB, UART, I2C, and GPIO for easy functionality expansion and sensor connectivity, providing a flexible and reliable development platform for IoT terminals, electronic tags, portable displays, and other applications.

• RP2350A microcontroller chip designed by Raspberry Pi in the United Kingdom
• Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
• Built-in 520KB Static RAM, with onboard 16MB Flash
• Type-C port for easier use
• Onboard 1.54inch e-paper display, 200 × 200 resolution, features high contrast and wide viewing angle
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• Adapting 7 × GPIO pins and USB+/- pins
• 1 × I2C, 1 × UART, 2 × 12-bit ADC, 6 × controllable PWM channels
• Accurate clock and timer on-chip
• Built-in temperature sensor for real-time monitoring of chip temperature
• 12 × programmable I/O (PIO) state machines for custom peripheral support
