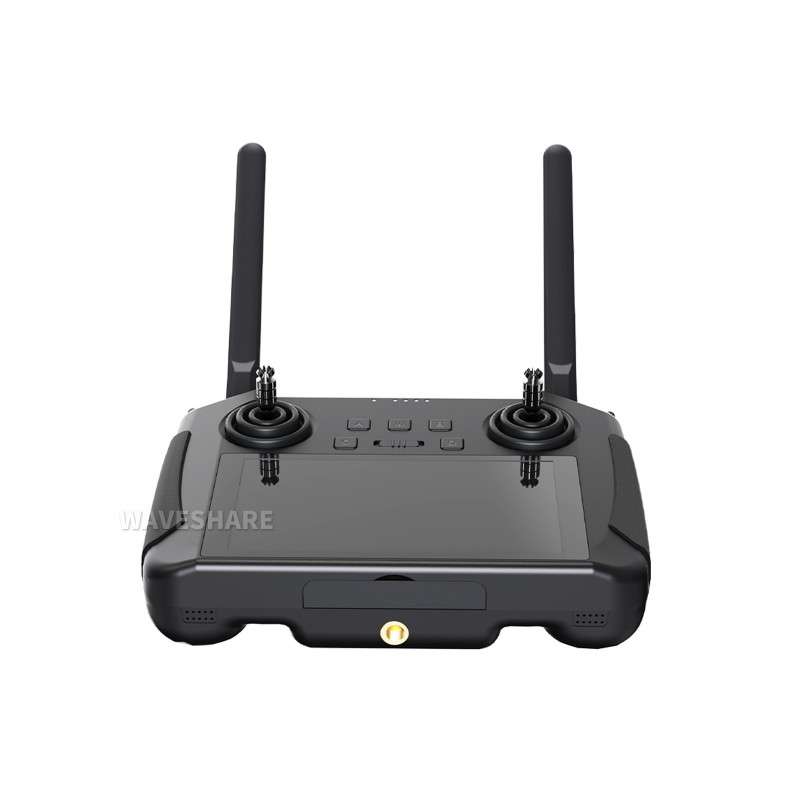

EyeLink-RC-S1 Enterprise Edition Lightweight Handheld Ground Station, 5.5inch 1080P Display, External HD Camera (WS-31986)

EyeLink-RC-S1 Enterprise Edition Lightweight Handheld Ground Station, 5.5inch 1080P Display, External HD Camera (WS-31986)

Name: EyeLink-RC-S1 Enterprise Edition Lightweight Handheld Ground Station, 5.5inch 1080P Display, External HD Camera (WS-31986)
Brand: Waveshare Electronics
SKU: WS-31986
Price: 613.77 EUR
Availability: BackOrder

Kód WS-31986

613,77 €

499.00 € bez DPH

Popis
Detaily produktu

EyeLink-RC-S1 Enterprise Edition Lightweight Handheld Ground Station, 5.5inch 1080P Display, External HD Camera (WS-31986)

EyeLink-RC-S1 Enterprise Edition Lightweight Handheld Ground Station, 8-core CPU, Onboard 5.5inch 1080P Touch Display, External HD Camera Support, Equipped With An R1M Recording HD Camera

EyeLink-RC-S1

Enterprise Edition

Lightweight Handheld Ground Station

Specifications

Overall Performance
Max Transmission Range (Unobstructed, free of interference)	15KM
Channels	13 physical channels 16 communication channels
Datalink Compatible Flight Controllers	Open-source flight controllers such as PIX, APM, etc. BOYING Paladin v2 JIYI K3A Pro / K++ VK V7AG
Video Stream Compatible GCS	QGroundControl MissionPlanner JIYI IFLY / Agri-Assistant BOYING Agriculture VK V7Pro
Ground Unit
Monitor Display	5.5inch 1080P high definition and high brightness LCD touchscreen
System	Android 9.0 OS, 2GB RAM, 16GB ROM
Dimensions (Antenna Overlapped)	189.09 × 137.95 × 69.72 (mm)
Weight	850g
Battery Capacity & Type	10200mAh, 7.4V 2S Li-ion battery
Fast Charging Protocol	PD 20W
Charging Time	5h (PD 20W)
Battery Life	13h
Interface & Ports	Charging: Type-C Firmware upgrade: DATA (4PIN) Mobile network: SIM card slot External storage: TF card slot Tripod mount: 1/4 screw hole Video output: standard HDMI External RTK: DATA (4PIN) External USB Flash Drive: USB-A
Waterproof Level	IP53
Working Temperature	-10°C ~ 55°C
Air Unit
Signal Output	16 channels of S.Bus 5 channels of PWM
Interface & Ports	S.Bus: 3PIN Datalink (to FC): UART 4PIN PWM channels 1-5: 6PIN Video input: 8PIN Firmware upgrade: Type-C
Dimensions (Antenna Excluded)	70 × 55 × 16 (mm) (fan included)
Weight (Antenna Excluded)	100g (buck module included)
Antenna Gain	5dBi
Working Voltage	25.2V ~ 58.8V (6S ~ 14S)
Working Temperature	-10°C ~ 55°C
R1M Recording FPV Camera
Video Output	Ethernet port
Image Sensor	1/2.9 inch
Pixel	2MP
FOV	Diagonal: 90° Horizontal: 80°
Working Voltage	12V
Power Consumption	2.5W
Video Recording Resolution	1080p (1920 × 1080) @30fps 720p (1280 × 720) @30fps
Video Recording Bitrate	12Mbps
Video Recording Format	MP4
Supported Memory Card Type	MicroSD Class10 Less than 32GB
Supported File System	FAT32
Dimensions	42 × 42 × 25 (mm)
Weight	23g
Working Temperature	-10℃ ~ 50℃

15KM Wireless Digital Image Transmission, dual Full HD image Real-time Display

The system is based on independent wireless HD image transmission technology, which is an all-in-one link integrated with remote control, datalink, and video streaming, it features adaptive frequency band capabilities to effectively avoid interference and ensure stable transmission.

EyeLink-RC-S1, 15KM Wireless Digital Video Transmission, Dual-channel Full HD Video Real-time Display

5.5inch High-Definition monitor
1000 nits high brightness display

The EyeLink-RC-S1 comes with a built-in 5.5inch high-definition and high brightness monitor. Max 1000 nit (cd/m²) of brightness presents high clear screen display information from ground control software and high-quality images.

EyeLink-RC-S1, lightweight handheld ground station equipped with a 5.5inch HD high-brightness display

8-core CPU, high-speed computing

The EyeLink-RC-S1 handheld ground station carries Qualcomm 8-core CPU, which can smoothly decode 1080p 60 fps video stream by hardware in either H264 or H265 format and efficiently run various ground control software.
