      AlphaBot2 robot building kit for Arduino (WS-12910)

      AlphaBot2 Robot Building Kit For Arduino, With Controller R3 PLUS

      This product is developed, manufactured, and tech supported by Waveshare.

      Overview

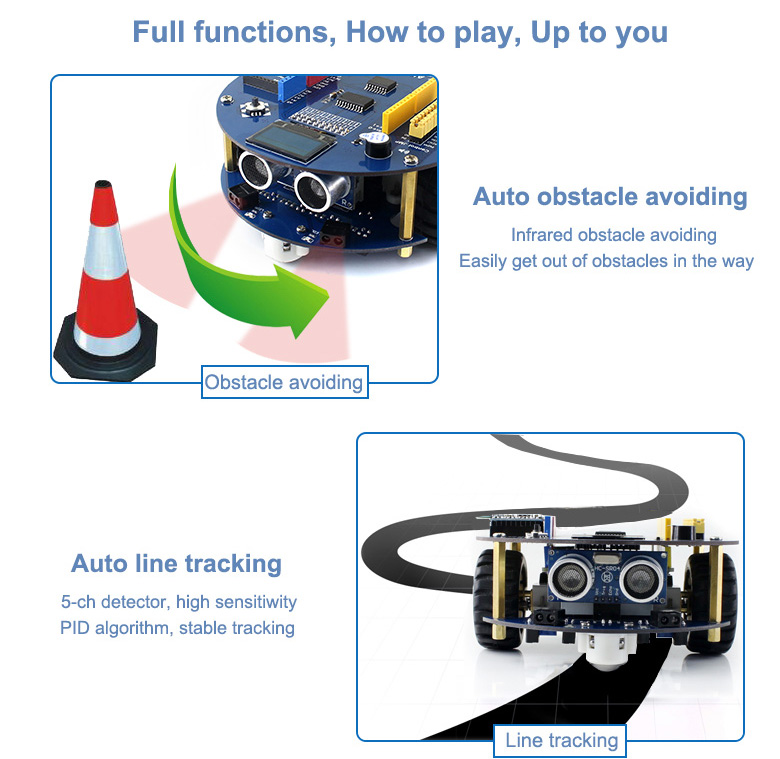

      This AlphaBot2 robot kit is designed to use with an Arduino compatible board R3 PLUS. It features rich common robot functions including line tracking, obstacle avoiding, ultrasonic ranging, infrared remote control, Bluetooth communication, etc.

      Thanks to the highly integrated modular design, it is fairly easy to assemble by a snap, no soldering, no wiring. After a few minutes spent on hardware assembing, you're almost there, our open source demo codes is ready to help you get started fast.

      R3 PLUS Features

      The R3 PLUS is an Arduino-Compatible microcontroller development board.

      R3 PLUSOFFICIAL R3REMARKS
      Operating voltage 5V/3.3V 5V Dual voltage level to support more shields
      Reset Lateral Vertical Lateral button is easier to use when connecting with shield
      Bootloader switch Yes None The board can be configured to run program immediately when power-up by the switch
      USB connector Micro USB USB Type B Micro connector is more commonly used, and shields won't be blocked anymore while connecting
      DC jack Low profile Normal height Shields won't be blocked anymore while connecting
      Power output header Yes None

      Providing 5V/3.3V power output OR common-grounding with other boards

      3.3V power output 800mA Max 150mA Max R3 PLUS features higher driving capability
      Oscillator Crystal oscillator Ceramic resonator Crystal oscillator is suit for applications where accurate clock reference is required
      ADC channel 8 6 CFG used as ADC6 by configuration, and ADC7 from the Reserved PIN
      Connecting with
      prototype breadboard
      Supported Not supported Solder pads is provided for DIY interfaces to connecting with prototype breadboard
      USB driver Compatible with all main systems Doesn't compatible with WIN7/WIN8 Express Edition Driver will never failed to install thanks to the onboard FT232
      Firmware fixing Supported Not supported Firmware can be fixed by using the onboard FT232, no extra programmer is needed

      AlphaBot2 Features

      AlphaBot2 employs a 2-layer structure to provide excellent stability and compatibility.

      AlphaBot2-Base, the lower base chassis:

      • 5-ch infrared sensor, analog output, combined with PID algorithm, stable line tracking
      • Onboard modules like line tracking, obstacle avoiding, needs no messy wiring
      • TB6612FNG dual H-bridge motor driver, compared with L298P, it's more efficient, more compact, and less heating
      • N20 micro gear motor, with metal gears, low noise, high accuracy
      • Onboard RGB LEDs, true color lighting, pretty cool

      AlphaBot2-Ar, the upper adapter board for controller:

      • Onboard Arduino interface, into which Arduino controller can be directly plugged
      • 0.96inch 128x64 yellow/blue dual color OLED
      • TLC1543 AD acquisition chip
      • PC8574 I/O expander, avoid I/O shortage
      • Xbee connector, for connecting dual-mode Bluetooth module

      What's on the R3 PLUS


      1. ATMEGA328P-AU
      2. AMS1117-3.3
        3.3V voltage regulator
      3. NCP1117ST50T3G
        5V voltage regulator
      4. FT232RL
        USB to UART convertor
      5. Arduino interface
        • compatible with standard Arduino interface with two additional analog inputs A6 (config the CFG), A7
        • solder pads provided, supports prototype breadboard
      6. ICSP interface
      7. MICRO USB connector
        for uploading program OR serial port debugging
      8. Power output header
        3.3V OR 5V, voltage level configured by the onboard power configuration switch, used as power output OR common-grounding with other boards
      9. FT232 pins
        for burning Bootloader into the microcontroller
      10. DC input
        7V ~ 12V
      11. Reset button
      12. Power indicator
      13. Serial port Rx/Tx indicator
      14. User LED
      15. 500mA fast auto-recovery fuse
      16. Power configuration
        for configuring the operating voltage
      17. Bootloader selection switch
        • turn ON: the board will reset when power-up OR other USB devices were detected connecting to the PC
        • turn OFF: the onboard program runs immediately when power-up, and the board will not reset when other USB devices were detected connecting to the PC

      What's on the AlphaBot2-Base

      AlphaBot2-Base on board resource

      1. AlphaBot2 control interface: for connecting sorts of controller adapter board
      2. Ultrasonic module interface
      3. Obstacle avoiding indicators
      4. Omni-direction wheel
      5. ST188: reflective infrared photoelectric sensor, for obstacle avoiding
      6. ITR20001/T: reflective infrared photoelectric sensor, for line tracking
      7. Potentiometer for adjusting obstacle avoiding range
      8. TB6612FNG dual H-bridge motor driver
      9. LM393 voltage comparator
      10. N20 micro gear motor reduction rate 1:30, 6V/600RPM
      11. Rubber wheels diameter 42mm, width 19mm
      12. Power switch
      13. Battery holder: supports 14500 batteries
      14. WS2812B: true color RGB LEDs
      15. Battery charging indicator
      16. 5V USB battery charging port
      17. Power indicator

      What's on the AlphaBot2-Ar

      AlphaBot2-Ar on board resource

      1. AlphaBot2 control interface: for connecting AlphaBot2-Base
      2. Arduino expansion header: for connecting Arduino shields
      3. Arduino interface: for connecting Arduino compatible controller
      4. Xbee connector: for connecting dual-mode Bluetooth module, remotely control the robot via Bluetooth
      5. IR receiver
      6. PC8574: I/O expander, SPI interface
      7. Arduino peripheral jumpers
      8. TLC1543: 10-bit AD acquisition chip
      9. Buzzer
      10. 0.96inch OLED 128x64 resolution
      11. Joystick

      Photos

      AlphaBot2-Ar illustration AlphaBot2-Ar illustration AlphaBot2-Ar illustration

      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar top view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar bottom view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Base top view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Base bottom view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar robot side view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar robot side view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar robot front view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar robot back view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar robot bottom view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar robot bottom view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar robot top view
      Raspberry Arduino Robot AlphaBot2
      AlphaBot2-Ar robot disassembly

      Examples

      Raspberry Arduino Robot AlphaBot2 Demo
      AlphaBot2 multi robots line following
      Raspberry Arduino Robot AlphaBot2 Demo
      AlphaBot2-Ar robot line tracking
      Raspberry Arduino Robot AlphaBot2 Demo
      AlphaBot2-Ar robot obstacle avoiding
      Raspberry Arduino Robot AlphaBot2 Demo
      AlphaBot2-Ar robot Bluetooth control

      Note: photos are FOR REFERENCE ONLY, the other boards/modules/accessories are NOT included in the price.

      Dimensions

      AlphaBot2-Base dimensions

      Development Resources

      Wiki : www.waveshare.com/wiki/AlphaBot2-Ar

      Wiki : www.waveshare.com/wiki/R3_PLUS

      Balenie Obsahuje / Package Content

      AlphaBot2-Ar Acc Pack

      Note: this product requires two 14500 batteries to work, which are NOT included and should be purchased separately.

      1. AlphaBot2-Ar (adapter board) x1
      2. AlphaBot2-Base (base chassis) x1
      3. Ultrasonic sensor x1
      4. IR remote controller x1
      5. FC-20P cable 8cm x1
      6. USB type A plug to micro B plug cable x1
      7. AlphaBot2-Ar screws x1
      8. Screwdriver x1 (Extra Free)

      Additional Parts in the Kit

      1. R3 PLUS x1
      2. Dual-mode Bluetooth x1
