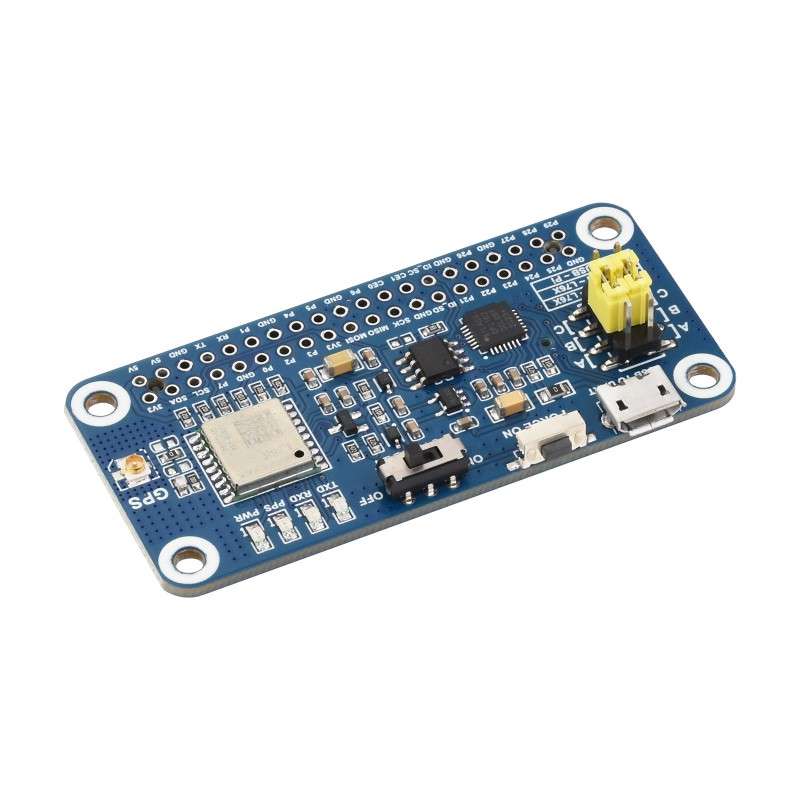

L76K GPS HAT For Raspberry Pi, GPS / BeiDou (BDS) / GLONASS / QZSS Support (WS-31932)
WS-31932
28,17 €
22.90 € bez DPH
L76K GPS HAT For Raspberry Pi, GPS / BeiDou (BDS) / GLONASS / QZSS Support (WS-31932)
L76K GPS HAT For Raspberry Pi, GPS / BeiDou (BDS) / GLONASS / QZSS Support (WS-31932)
L76K GPS HAT For Raspberry Pi, GPS / BeiDou (BDS) / GLONASS / QZSS Support
L76K GPS HAT for Raspberry Pi
Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
Features at a glance
The L76K GPS HAT is a Multi-GNSS (Global Navigation Satellite System) module, supports GPS, BeiDou (BDS), GLONASS and QZSS systems, allows multi-system combined or single-system independent positioning. Supports AGNSS function, built-in low-noise amplifier and sound surface filter, provides a good positioning experience of fast, accurate, high-performance.
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi / Jetson / RDK series boards
- Supports Multi-GNSS systems: GPS, BeiDou (BDS), GLONASS and QZSS
- Built-in Low-Noise Amplifier (LNA) for improved reception sensitivity
- Built-in SAW Filter for enhanced noise reduction performance
- Supports AGNSS
- UART communication baudrate: 4800~115200bps (9600bps by default)
- Onboard battery holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
- 4x LEDs for indicating the module operating status
- Comes with online development resources and manual (examples for Raspberry / Jetson / Arduino / STM32)
Specifications
| GNSS parameters | |
|---|---|
| GNSS | GPS/GLONASS/BDS/QZSS |
| Chip Platform | AT6558R |
| L1 Band Receiver (Channels) |
32 tracking ch/ 72 acquisition ch |
| L1 Band Receiver SBAS |
N/A |
| A-GNSS | Support |
| Sensitivity （Acquisition） |
-148dBm |
| Sensitivity (Re-acquisition) |
-160dBm |
| Sensitivity (Tracking) |
-162dBm |
| TTFF (Time to first fix) Cold starts |
30s, Autonomous 5.5s, With AGNSS |
| TTFF (Time to first fix) Hot starts |
2s |
| Position accuracy | 2.0m CEP |
| Speed accuracy | 0.1m/s |
| Acceleration accuracy(Max) | 0.1m/s² |
| Timing accuracy | 30ns |
| Others | |
| Communication interface | UART |
| Baudrate | 4800~115200bps (9600bps by default) |
| Update rate | 1Hz (default), 5Hz (max) |
| Power supply voltage | 5V |
| Overall current consumption | < 55mA@5V (Continue mode) |
| Protocols | NMEA 0183, CASIC Proprietary Communication Protocol |
| Operating temperature | -40℃ ~ 85℃ |
| Dimensions | 65.00 × 30.50 (mm) |
Standard Raspberry Pi 40PIN GPIO
Compatible with Raspberry Pi / Jetson / RDK series boards
* for reference only, please refer to the part list for detailed package content.
Multi-GNSS Positioning Support
supports GPS, Beidou(BDS), Glonass, QZSS
Augment systems support
Augment system is aimed at improving the accuracy, integrity, reliability, and availability of positioning and navigation
Supports A-GNSS augment system
Pin definition
Application Scenarios
Vehicle tracking, asset tracking, security systems, industrial PDAs, GIS applications, etc.
What's on board
- L76K module
- CP2102
- CAT24C32
- RT9193-33
power chip - GNSS configuration button
- Standby mode switch
- Status indicators
- Raspberry Pi 40PIN GPIO header
for connecting with Raspberry Pi
- USB TO UART port
- GNSS antenna connector
- Battery holder
supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts - UART selection jumper
A: control the L76K via USB to UART
B: control the L76K via Raspberry Pi
C: access Raspberry Pi via USB to UART
Outline dimensions
Balenie obsahuje / Package Content
- L76K-GPS-HAT x1
- GPS Antenna x1
- 2x20PIN header x1
- USB Type-A to Micro-B cable x1
- Screws pack x1
WS-31932
