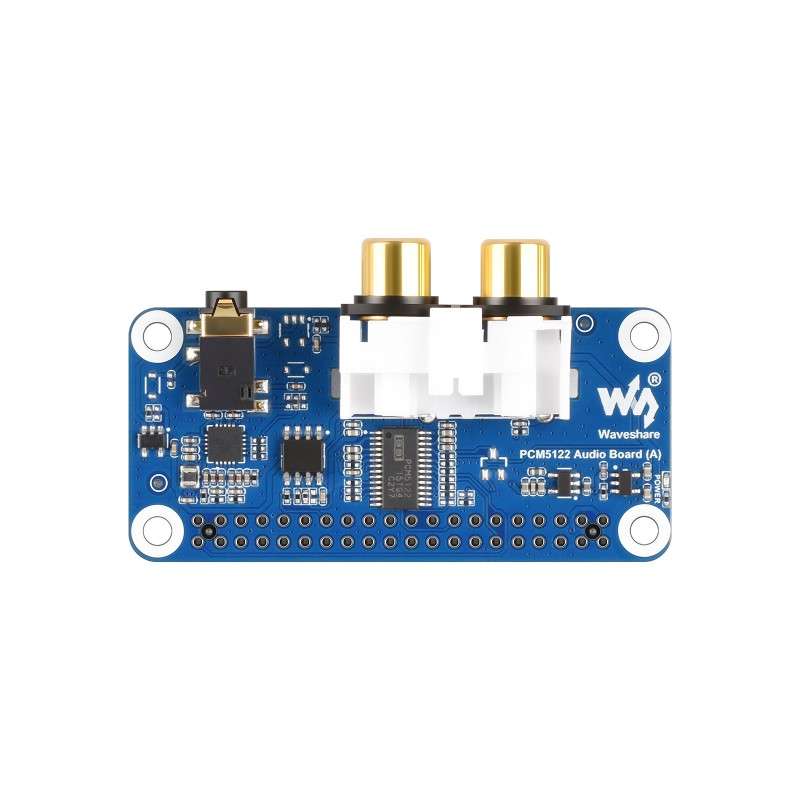

PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi, 40PIN GPIO, Stereo Encoding/Decoding, HQ Audio (WS-32223)
WS-32223
13,41 €
10.90 € bez DPH
PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi, 40PIN GPIO, Stereo Encoding/Decoding, HQ Audio (WS-32223)
PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi, 40PIN GPIO, Stereo Encoding/Decoding, HQ Audio (WS-32223)
PCM5122 HIFI I2S DAC Audio Board For Raspberry Pi, Based On Raspberry Pi 40PIN GPIO Header, Stereo Encoding/Decoding, Supports High-quality Audio Playback
PCM5122 HIFI I2S DAC Audio Board
for Raspberry Pi
for Raspberry Pi
Supports Stereo Encoding / Decoding And High-quality Audio Playback
Features
- Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
- Adopts PCM5122 professional stereo DAC chip, controlled through I2C, with audio transmitted via I2S interface
- Onboard standard 3.5mm headphone jack, supports audio playback via external headphones
- Built-in RCA connector for use with speaker and other devices in a variety of scenarios
- Supports sampling frequency up to 384kHz
- Supports up to 32-bit resolution audio data
Designed for Raspberry Pi
Based on Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi series boards
* for reference only, please refer to the package content for detailed part list.
PCM5122 Audio Chip
Stereo decoder, controlled through I2C, with audio transmitted via I2S
Onboard Headphone Jack & RCA connector
Onboard standard 3.5mm headphone jack, supports audio playback via external headphones, and features RCA connector for connecting external speaker
Onboard EEPROM Chip
Used for automatic driver loading in Raspberry Pi OS
Pin definition
Outline dimensions
Balenie Obsahuje / Package Content
- PCM5122 Audio Board (A) x1
- 2*20pin header x1
- Screwdriver x1
