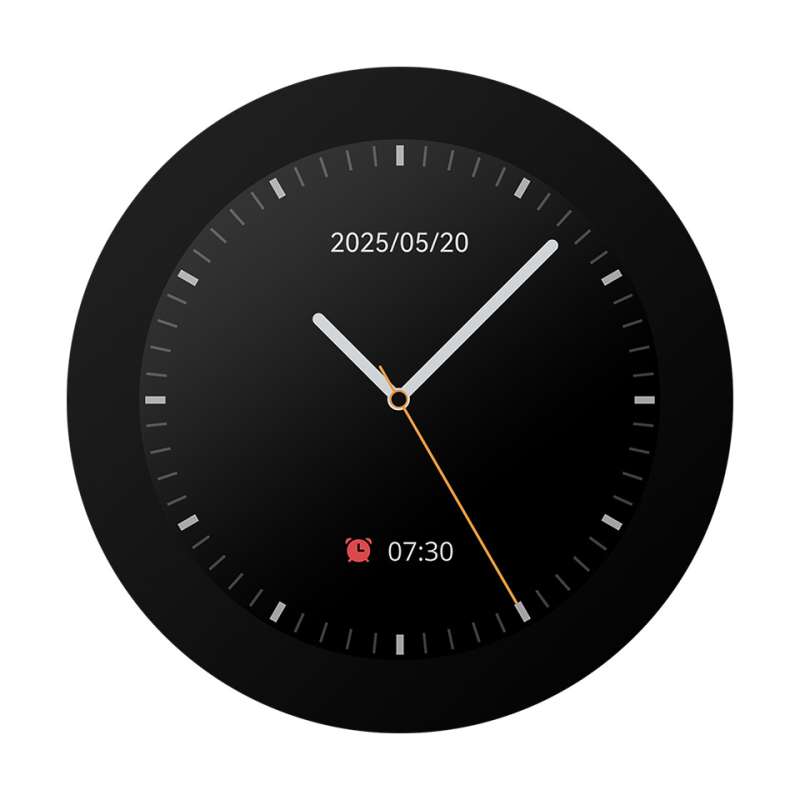

    2.8″ 480x480 NEXTION INTELLIGENT HMI DISPLAY (NX4848E028-011C)

    Nextion je riešenie rozhrania človek-stroj (HMI), ktoré kombinuje integrovaný procesor a pamäťový dotykový displej so softvérom Nextion Editor pre vývoj projektov HMI GUI. Pomocou softvéru NEXTION Editor môžete rýchlo vyvinúť HMI GUI pomocou komponentov drag-and-drop (grafika, text, tlačidlo, posúvač atď.) a inštrukcií založených na texte ASCII pre kódovanie interakcie komponentov na strane displeja. Displej Nextion HMI sa pripája k periférnemu MCU prostredníctvom sériového rozhrania TTL (5 V, TX, RX, GND), aby poskytoval oznámenia o udalostiach, na ktoré môže periférny MCU reagovať. Periférny MCU môže jednoducho aktualizovať priebeh a stav späť na displej Nextion pomocou jednoduchých textových inštrukcií ASCII. V porovnaní s inými sériami sú produkty série Edge ľahšie inštalovateľné a majú elegantnejší a tenší dizajn. Funkcie prehrávania zvuku, videa a animácií obohacujú interakciu používateľa s projektom HMI. Séria Edge podporuje pokročilé softvérové vlastnosti a funkcie, ako sú priehľadné komponenty, efekt načítania stránky, presúvanie a ťahanie komponentov atď.

    Balenie Obsahuje / Package Content

    • displej Nextion NX4848E028-011C HMI
    • 4-pinový kábel
    • testovaciu dosku napájania

    Poznámka: malá testovacia doska napájania a pripojovací kábel vo vnútri balíka vám umožňujú otestovať, či je elektrické napájanie dostatočné. Pozrite si obrázok nižšie, ako ho používať.

    Nextion is a Human Machine Interface (HMI) solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text-based instructions for coding how components interact at the display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that the peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text-based instructions.
    Compared with other series, the Edge Series products are easier to install and feature a sleeker, slimmer design. The audio, video and animation play functions enrich the user’s project HMI interaction. The Edge Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.

    Package include: Nextion NX4848E028-011C HMI Display*1, 4Pin wire*1, power supply test board*1.

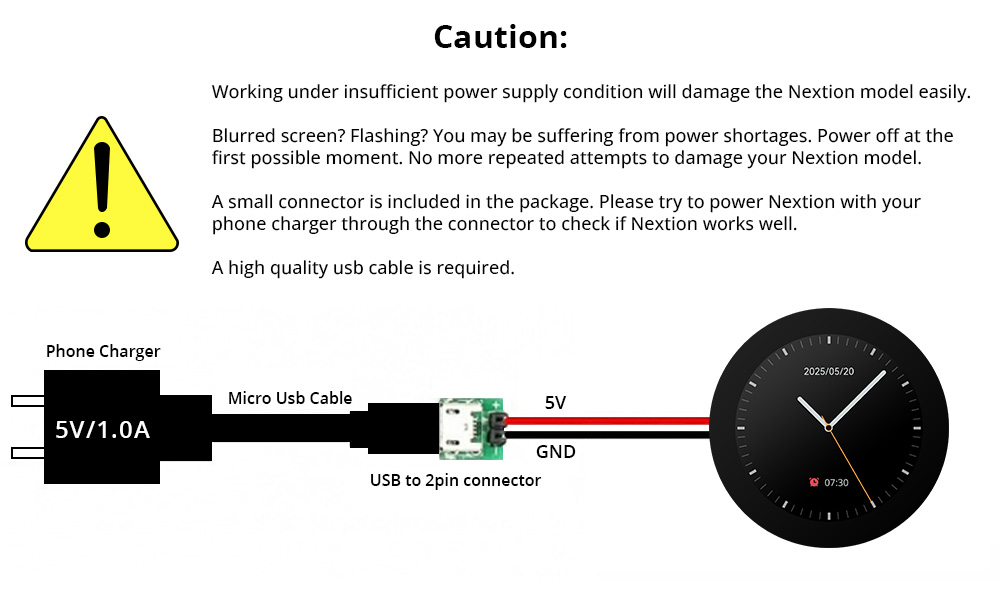

    Note: the small power supply test board and connecting wire inside the package allow you to test if the electrical supply is enough or not. See the image below on how to use it.

    Nextion_Discovery_2.8

    Nextion Models

    Nextion Type Basic Series
    Nextion Models NX4848E028-011C

    Specifications

    Data Description
    Color 65K 65536 colors 16 bit 565, 5R-6G-5B
    Layout size  90.50mm(L)× 90.50mm(W)×5.11mm(H) NX4848E028-011C
    Active Area (A.A.) 70.13mm(L)×70.13mm(W)
    Resolution 480×480 pixel
    Touch type Capacitive
    Backlight LED
    Backlight lifetime (Average) >30,000 Hours
    Brightness 300nit 0% to 100%, the interval of adjustment is 1%
    Weight 48g

    Electronic Characteristics

    Test Conditions Min Typical Max Unit
    Operating Voltage 4.65 5.0 6.5 V
    Operating Current VCC=+5V, Brightness is 100% 250 mA
    Normal SLEEP Mode (lowpower=0) 95 mA
    Deep SLEEP Mode (lowpower=1) mA
    Power supply recommend:5V, 1A, DC.

    Working Environment & Reliability Parameter

    Test Conditions Min Typical Max Unit
    Working Temperature 5V, Humidity 60% -20 70 °C
    Storage Temperature -30 80 °C
    Working Humidity 25°C 10% 90% RH

    Interfaces Performance

    Test Conditions Min Typical Max Unit
    Serial Port Baudrate Standard 2400 9600 921600 bps
    Output High Voltage IOH=-1mA 3.0 3.2 V
    Output Low Voltage IOL=1mA 0.1 0.2 V
    Input High Voltage 2.0 3.3 5.0 V
    Input Low Voltage -0.7 0.0 1.3 V
    Serial Port Mode TTL 3.3V
    Serial Port 4Pin_1.25mm (molex)
    USB interface NO
    SD card socket Yes (FAT32 format), support maximum 32G Micro SD Card
    * microSD card socket is exclusively used to upgrade Nextion firmware /HMI design
    Extended IO 8 Digital extended GPIO (FPC 0.5*10)
    IO0-IO7 support input, output and component binding event (3.3V)
    * IO pin / ports are not exclusive, limit current draw to 1mA recommended
    IO4-IO7 support PWM
    RTC built-in RTC support (1.25mm pitch 2-pin)

    Memory Features

    Memory Type Test Conditions Min Typical Max Unit
    FLASH Memory Store fonts and images 120 MB
    User Storage EEPROM 1024 BYTE
    RAM Memory Store variables 512 KB
    Instruction Buffer 4096 BYTE

    Audio Features

    Speaker Parameter Min Typical Max Unit
    Power 2 W
    Audio Connector Type:1.25T-2-2A (1.25mm pitch 2-pin housing)

    * NX4848E028-011C do not have speaker in the package.

    Product Dimensions

    E Series_2.8”_Nextion_Dimension

    Product Certificates

    CE CertificateRoHS

    NEXTION, SONOFF, ITEAD STUDIO
    NX4848E028-011C
