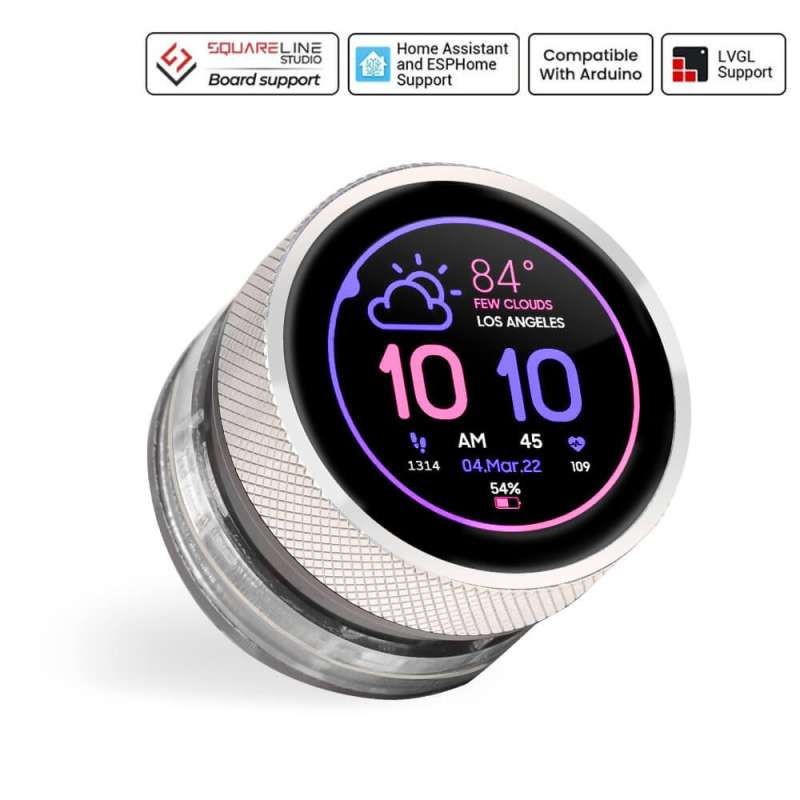

CrowPanel 1.28inch-HMI ESP32 Rotary Display 240x240 IPS Round Touch Knob Screen (DHE38128D)

• [Interakčný režim] Podporuje kapacitné dotykové ovládanie a otočné vstupy. Gombík podporuje otáčanie v smere hodinových ručičiek, proti smeru hodinových ručičiek a stlačenie.
• [Vysoko výkonné hlavné ovládanie] Vybavené 32-bitovým dvojjadrovým čipom ESP32-S3, maximálna taktovacia frekvencia je 240 MHz, s vysokým výkonom.
• [Bezdrôtová komunikácia] Podporuje 2,4G WiFi a BLE nízkoenergetické Bluetooth.
• [Rozširujúce rozhranie] Vybavené 5V nabíjacím rozhraním, poskytuje tri rozširujúce rozhrania UART, I2C a FPC.
• [Dizajn okolitého osvetlenia] Dodáva zariadeniu pocit sviežosti a zlepšuje používateľský zážitok.
• [Nízkoenergetický dizajn] Predlžuje životnosť batérie zariadenia a znižuje spotrebu energie.
• [Široká kompatibilita] Podporuje Arduino IDE, Espressif IDF, Lua RTOS, Esphome-homeassistant/PlatformIO/Micro python a podporuje knižnicu LVGL.

The rotary screen is an intelligent interactive device that usually consists of a circular knob and a display. The knob can be rotated to control various functions, while the display is used to display relevant information. ESP32 Display - 1.28 inch rotary screen, uses high-performance ESP32-S3 chip, equipped with 32-bit dual-core chip. The maximum clock frequency reaches 240MHz, with strong performance and the ability to handle complex tasks. Supports 2.4G WiFi and BLE low-power Bluetooth, to achieve reliable wireless communication, easily connect to the Internet, suitable for smart home, industrial control, portable devices and other scenarios. Supports capacitive touch operation and knob input. The knob supports clockwise, counterclockwise rotation and full press operation, smooth feel, and various interaction methods. The 5V charging interface supports power supply and program burning, and is also equipped with three expansion interfaces of UART, I2C, and FPC to meet development needs. The atmosphere light design adds a cool feeling, and the low power design makes it suitable for smart home appliances and portable devices. It supports Arduino IDE, Espressif IDF, Lua RTOS, Home Assistant/PlatformIO/Micro python, and supports LVGL library; you can design the UI interface yourself, it is an ideal platform for DIY projects. ESP32 Display - 1.28inch rotary screen is not just an interactive module, but an intelligent interaction solution that combines high performance, multi-function, and ease of use. Whether you are an IoT developer, smart home enthusiast, or professional, you can find an efficient tool that meets your needs.

Rotary input, smooth feel

Capacitive touch, sensitive and smooth operation

Compatible with LVGL graphics library

 Support multiple development environments

Application Scenarios

Details Overview



Feature

• Interaction mode: supports knob input, the knob supports clockwise, counterclockwise rotation and full press operation, and can adjust volume, brightness, etc.
• Touch function: supports capacitive touch, sensitive operation, and provides a smooth user experience.
• High-performance main control: equipped with a 32-bit dual-core ESP32-S3 chip, equipped with 8M PSRAM and 16M flash memory, and the maximum clock frequency is 240MHz.
• Wireless communication: supports 2.4G WiFi and BLE low-power Bluetooth to achieve data exchange and remote control between devices.
• Expansion interface: equipped with a 5V charging interface, supports power supply and program burning; provides three expansion interfaces: UART, I2C and FPC.
• Low power design: supports low power mode, suitable for smart home appliances and portable devices.
• Ambient light design: adds a cool feeling to the device and enhances the user experience.
• Multi-language development: supports Esphome-homeassistant/PlatformIO/Micro python, and also supports LVGL library.
• Application scenarios: suitable for smart home, industrial control, IoT projects, access control systems, Industrial control, portable devices and other scenarios.



Who Needs This?

Makers/open source hardware enthusiasts: DIY smart home controllers, light regulators, desktop instruments, custom input devices, etc.

Home appliance or IOT manufacturers: develop customized control equipment, shorten product design cycle, intend to mass produce, etc.

Education and training institutions: provide teaching kits for courses related to embedded systems, the Internet of Things, and UI design, which are easy for students to get started and intuitive to operate.

Specification

Main Chip: ESP32-S3R8
Processor	Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, with a main frequency of up to 240MHz
System memory	512KB SRAM、8M PSRAM
Storage	16M Flash
Screen
Size	1.28 inch
Screen Type	IPS
Touch Type	Capacitive Touch
Resolution	240*240
Wireless Communication
Bluetooth	Bluetooth Low Energy and Bluetooth 5.0
WiFi	Support 802.11a/b/g/n，2.4GH
Hardware
UART Interface	2x UART, ZX-MX 1.25-4P
I2C interface	ZX-MX 1.25-4P
FPC connector	12P, Power supply burning port
Button	RESET button, BOOT button, confirmation button (knob press switch)
LED Light	Power indicator, LED ambient light
Other
Power Input	5V/1A
Operating temperature	-20~65℃
Storage temperature	-40~80℃
Operation Power	Module：DC5V   Main Chip：3.3V
Size	48*48*33mm
Shell	Aluminum alloy + plastic + acrylic
Net Weight	50g



Why Choose Us?

As an industry-leading equipment manufacturer for 11 years, we rely on our independently developed core technology and the production strength of our factories to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

Package List

• 1x ESP32 Display-1.28 inch Rotary Display
• 1x 4pin Dupont Cable
• 1x 50 cm MX1.25 to USB Cable
