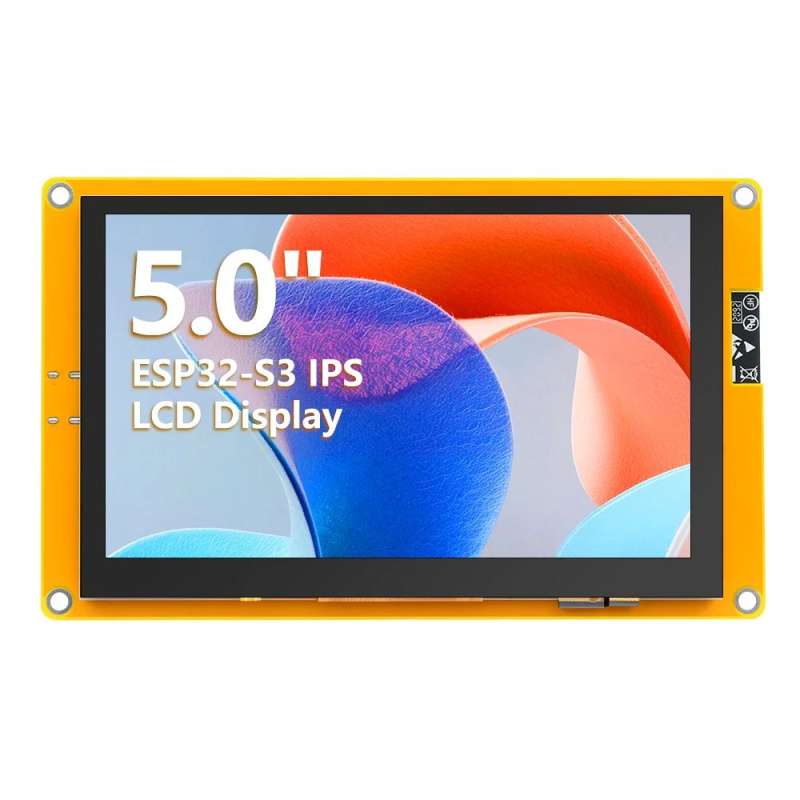

5” ESP32-S3 IPS Display, 800×480 Capacitive Touchscreen, Supports WiFi/Bluetooth, With Speaker Interface (ER-DLE06050B)

5” ESP32-S3 IPS Display, 800×480 Capacitive Touchscreen, Supports WiFi/Bluetooth, With Speaker Interface (ER-DLE06050B)

Name: 5” ESP32-S3 IPS Display, 800×480 Capacitive Touchscreen, Supports WiFi/Bluetooth, With Speaker Interface (ER-DLE06050B)
Brand: ELECROW
SKU: ER-DLE06050B
Price: 34.19 EUR
Availability: BackOrder

Kód ER-DLE06050B

34,19 €

27.80 € bez DPH

Popis
Detaily produktu

5” ESP32-S3 IPS Display, 800×480 Capacitive Touchscreen, Supports WiFi/Bluetooth, With Speaker Interface (ER-DLE06050B)

[Hlavný radič ESP32-S3] Dvojjadrový procesor 240 MHz, 8 MB PSRAM + 16 MB Flash, vysoký výkon
[5-palcový IPS displej s plným zobrazením] Rozlíšenie 800×480, vysoký jas 450 cd/m²
[Kapacitný dotykový displej] Ovládač GT911, komunikácia I2C, citlivá a plynulá interakcia
[Bezdrôtová konektivita] 2,4 GHz WiFi + Bluetooth 5.0, jednoduchý prístup k IoT
[Rozšírenie zvuku] Vstavané rozhranie reproduktora, podporuje prehrávanie hlasu a hlasové pokyny
[Bohaté rozhrania] Sťahovanie cez Type-C, TF karta, UART, SPI, rozšírené I/O rozhrania.
[Spoľahlivá kvalita] Viacnásobné testy starnutia, stabilná prevádzka v širokom teplotnom rozsahu -30~80 ℃
[Použitie ihneď po vybalení] Ukážkové programy + podpora ovládačov, rýchly štart vývoja

Podrobnosti

Tento modul s 5-palcovým IPS displejom s plným zobrazením ponúka rozlíšenie 80x480 a citlivý kapacitný dotykový displej, poháňaný hlavným radičom ESP32-S3. Radič využíva dvojjadrový procesor Xtensa LX7 s taktovacou frekvenciou až 240 MHz, 8 MB PSRAM a 16 MB Flash pamäte. Podporuje Wi-Fi 2,4 GHz a bezdrôtovú komunikáciu Bluetooth 5.0, čím poskytuje dostatočný výpočtový výkon pre IoT a vstavané HMI aplikácie. Modul integruje rozhranie Type-C (podporujúce sťahovanie jedným kliknutím), slot pre Micro TF kartu, sériový port UART, rozširujúce rozhranie SPI a rozhranie pre reproduktor, čo uľahčuje pripojenie k rôznym perifériám a senzorom. IPS obrazovka podporuje RGB565 s 65 000 farbami, má jas až 450 cd/m² a pracuje v teplotnom rozsahu -30 až 80 °C, čím zabezpečuje stabilnú prevádzku v rôznych prostrediach. Poskytuje množstvo vzorových programov a podporu základnej ovládačovej technológie, čo z neho robí ideálnu voľbu pre riadenie inteligentných domácností, priemyselné HMI a interaktívne projekty typu „urob si sám“.

feature of 5inch IPS ESP-32 Touchscreen

5inch IPS ESP-32 Touchscreen supports capacitive touch

5inch IPS ESP-32 Touchscreen with 800x480 resolution

5inch IPS ESP-32 Touchscreen supports LVGL

applications of 5inch IPS ESP-32 Touchscreen

hardware overview of 5inch IPS ESP-32 Touchscreen

package list of 5inch IPS ESP-32 Touchscreen

Feature

ESP32-S3 Main Controller: Dual-core Xtensa LX7 processor, 240MHz clock speed, built-in 8MB PSRAM + 16MB Flash, supports 2.4GHz WiFi and Bluetooth 5.0.
5-inch IPS Full-View Color Screen: 800x480 resolution, RGB565 65K color display, 450cd/m² high brightness, vibrant colors, and wide viewing angles.
Sensitive Capacitive Touch: Uses GT911 driver IC, I2C communication interface, fast response, supports smooth human-machine interaction.
Audio Playback Support: Built-in 1.25mm 2P speaker interface, allowing external speakers to play audio, suitable for voice prompts and multimedia projects.
Abundant Expansion Interfaces: Onboard Type-C (power supply/one-click download), TF card slot, UART0/1, SPI peripheral interface and multiple expansion I/O pins.
Convenient development experience: Standard Type-C interface with integrated one-click download circuit; provides sample programs and underlying driver technology support
Reliable quality: The module has undergone aging tests and multiple inspections, supports wide temperature range of -30~80℃, and is suitable for long-term stable operation.

Interface Definition

Interface Name	Function Description
ESP32-S3	Display module main control,control board peripheral and external peripheral.
MicroSD card slot	A MicroSD card is inserted to expand the storage space for storing large data such as characters, pictures, and audio files.
UART0	1.25mm 4P connector.It can be used for serial debugging, downloading, and communication. An external USB to serial port module is required.
BOOT Key	Used to enter download mode or key test. Press and hold this button to power on and release it to enter the download mode. Alternatively, press and hold this button and then press the RESET button to release the RESET button and then release this button to enter the download mode. When you do not need to enter the download mode, this button can be used as a common button.
Type-C Interface	Used for module power supply and downloading programs. This interface is connected to the one-click download circuit on the module, which can automatically enter the download mode (without pressing the BOOT key).
RESET Key	Used for ESP32 master control and LCD reset, level reset after pressing.
Expand Pin	1.25mm 4P socket, leading out GPIO17/GPIO18 pins.
UART1 & USB	1.25mm 4P socket, leading out four free pins: GPIO17, GPIO18, GPIO19 and GPIO20. GPIO17 and GPIO18 can be used for UART1, while GPIO19 and GPIO20 are compatible with the USB protocol.
SPI Interface	1.25mm 4P socket, designed for connecting external SPI communication devices. This SPI interface is shared with the resistive touch screen and SD card, and can also be used as GPIO.
Speaker connector	1.25mm 2P connector for connecting speakers to play audio.

Specification

ESP32 Module
Chip	ESP32-S3 (N16R8)
CPU	Xtensa LX7 32-bit dual-core processor
Frequency	240MHz(Max)
Memory	384KB ROM+512KB SRAM+16KB RTC SRAM+8M internal OPI PSRAM+16M external SPI Flash
Wi-Fi	2.4GHz, 802.11b/g/n mode
Bluetooth	Bluetooth V5.0 BR/EDR and Bluetooth LE standard
Screen
Panel Size	5.0 inch
Panel Type	IPS
Touch Screen Type	Capacitive touch screen
Resolution	800x480
Active Area	108(W)x64.8(H)(mm)
Number of Pixels	65K(RGB565)
Display Driver IC	ST7282
Screen interface	RGB565-16Bit
View Angle	ALL ’CLOCK
Brightness(TYP)	450 cd/m2
Backlight Type	White LED
Touch Driver IC	GT911
Communication Interface	IIC
Pixel Size	0.153(H)x0.153(mm)
Other
Working Voltage	5.0V
Total current (typical value)	290mA
Total power consumption (typical value)	1.45W
Power interface	Type-C
Operating temperature	-30~80(℃)
Storage temperature	-30~80(℃)
Module Size	137(W)x84(H)x13.75(D)
Net Weight	120g

ESP32 Pin Assignment

Onboard Equipment	ESP32 Connect Pins	Pin Description of Onboard Equipment
LCD	IO40	LCD panel chip select control signal, active low
	IO46	Data enable control pin
	IO41	Vertical sync signal control pin
	IO39	Horizontal sync signal control pin
	IO42	Pixel clock control pin
	IO42/48/47/21/14	5-bit RED data pin
	IO5/6/7/15/16/4	6-bit GREEN data pin
	IO8/3/46/9/1	5-bit BLUE data pin
Capacitive Touch Screen	IO20	Capacitive touchscreen IIC bus clock control pin
	IO19	Capacitive touchscreen IIC bus data write control pin
	IO38	Capacitive touchscreen reset control pin
	IO18	Capacitive touchscreen interrupt control pin
MicroSD Card	IO10	SD card SPI bus chip select control pin
	IO11	SD card SPI bus data read control pin
	IO13	SD card SPI bus data write control pin
	IO12	SD card SPI bus clock control pin
Button	IO0	Download mode selection button (press and hold this button while powering on, then release to enter download mode)
Button	EN	ESP32-S3 reset button, low-level reset (shared with LCD screen reset)
Serial Port	RXD0(IO43)	ESP32-S3 serial port receive signals (can be used as general I/O if the serial port is not used)
Serial Port	TXD0(IO44)	ESP32-S3 serial port transmit signals (can be used as general I/O if the serial port is not used)
SPI Interface	IO19	SPI bus chip select control pin: When USB signal function is not used, it can be used as a general-purpose I/O port.
	IO11	SPI bus data read control pin: When SD card function is not used, it can be used as a general-purpose I/O port.
	IO13	SPI bus data write control pin: When SD card function is not used, it can be used as a general-purpose I/O port.
	IO12	SPI bus clock control pin: When SD card function is not used, it can be used as a general-purpose I/O port.
Extension Interface	IO18	When touch, audio, and SD card functions are not used, it can be used as a general-purpose I/O port.
Extension Interface	IO17	When audio and SD card functions are not used, it can be used as a general-purpose I/O port.
USB	IO19	USB bus differential signal data line negative terminal
USB	IO20	USB bus differential signal data line positive terminal
UART1	IO17	ESP32-S3 serial port 1 transmit signal pin
UART1	IO18	ESP32-S3 serial port 1 receive signal pin
Speak audio playback interface	IO18	I2S left and right channel clock pins
	IO17	I2S audio data transmission pins
	IO0	I2S bit clock pins
