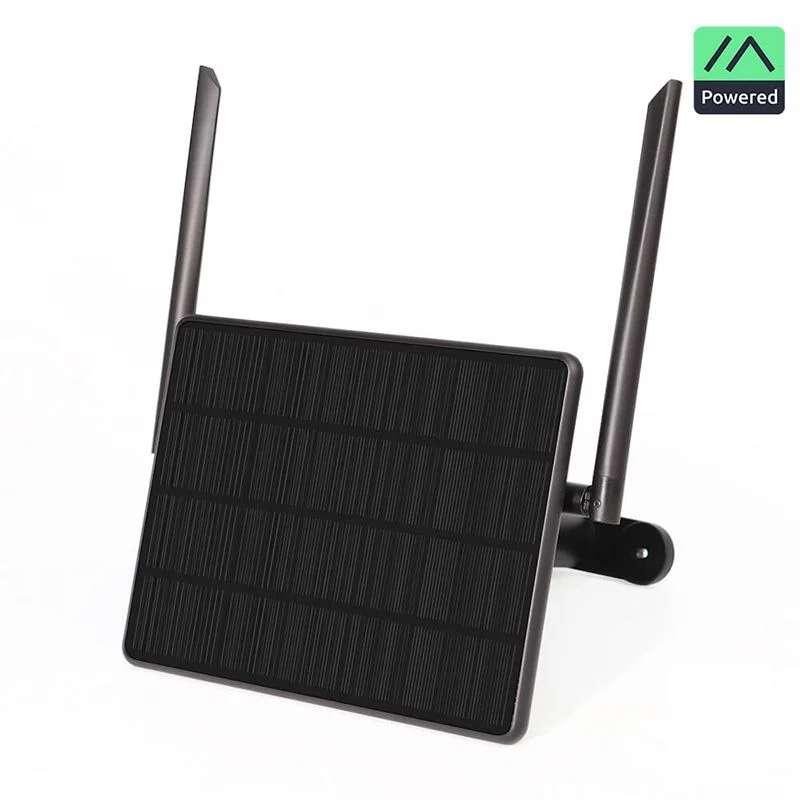

ThinkNode M6 Outdoor Solar Power for Meshtastic / Meshcore, Powered By nRF52840 Supports GPS-868 MHz

• [Napájací systém do každého počasia] Obsahuje monokryštalický kremíkový panel s výkonom 6 W a inteligentné nabíjanie MPPT, čím zabezpečuje vysokú účinnosť fotoelektrickej konverzie a stabilný, spoľahlivý zber energie.
• [Veľká kapacita a dlhá výdrž batérie] Je vybavený lítio-iontovým akumulátorom s kapacitou 7000 mAh s extrémne nízkou spotrebou energie a dokáže stabilne fungovať po dlhú dobu aj pri nepretržitom zamračenom alebo daždivom počasí.
• [Jednoduchá inštalácia] Predinštalovaný s firmvérom Meshtastic a podporuje oficiálnu aplikáciu, je pripravený na použitie hneď po vybalení.;
• [Vysoko výkonný čip: nRF52840] Vstavaný procesor Arm Cortex-M4 s frekvenciou 64 MHz a inštrukčnou sadou DSP umožňuje plynulé vykonávanie zložitých algoritmov.
• [Bezdrôtová konektivita] Bluetooth 5.4 (BLE) poskytuje nízku spotrebu energie a pripojenie k sieti za menej ako sekundu, zatiaľ čo LoRa SX1262 pokrýva celé frekvenčné pásmo 150–960 MHz.
• [Flexibilné rozšírenie] Dve vodotesné letecké rozhrania SP11 podporujú IIC a UART pre rýchlu integráciu s rôznymi senzormi.
• [Vysoko presné určovanie polohy] Modul GPS L76K podporuje presné určovanie polohy a zdieľanie informácií o polohe.

ThinkNode M6 Outdoor Solar Power je vysoko výkonné zariadenie IoT od spoločnosti Meshtastic určené pre náročné vonkajšie prostredia a priemyselné aplikácie.

Je vybavené transceiverovým modulom nRFLR1262 LoRa a procesorom nRF52840, ktoré podporujú duálne pripojenie Bluetooth a LoRa, čím zabezpečujú stabilný signál. Je vybavené 6W solárnou nabíjačkou a dvoma batériami 18650, vďaka čomu ponúka prevádzku za každého počasia. Jeho vodotesné puzdro s krytím IP65 umožňuje prevádzku v extrémnych prostrediach s teplotami od -20 °C do 60 °C. Ponúka flexibilné možnosti montáže, vrátane montáže na stenu, konzol, montáže na stĺp a U-svoriek. ThinkNode M6 je vybavený dvojitými vodotesnými leteckými konektormi SP11 a podporuje komunikáciu na veľké vzdialenosti, presné určovanie polohy a prevádzku s nízkou spotrebou energie. Je pripravený na okamžité použitie a rýchle nasadenie, čo je ideálne pre rozširovanie siete Meshtastic, vzdialené monitorovanie, reakcie na núdzové situácie v exteriéri a komunikáciu mimo siete, najmä vo vzdialených oblastiach s obmedzeným prístupom k vonkajšej sieti.

Feature

• All-Weather Power System

• • Integrated 6W high-efficiency silicon solar panels and MPPT smart charging maximize energy harvesting efficiency.
  • Combined with a large-capacity lithium battery and ultra-low power consumption, it maintains stable operation for extended periods.

• High-Performance Hardware Configuration

• • A built-in 64 MHz Arm Cortex-M4 processor with a DSP instruction set enables smooth execution of complex algorithms.

• Dual-mode communication chip for wireless connectivity

• • Bluetooth 5.4 (BLE) enables fast near-field configuration and low-power connectivity. The LoRa SX1262 chip supports the full 150-960 MHz frequency band.

• Flexible Expansion

• • Dual SP11 waterproof aviation interfaces support IIC/UART, enabling quick access to various sensors, such as temperature, humidity, gas, and soil sensors etc.

• Local Data Processing

• • Edge computing capabilities support local data pre-processing (such as filtering, compression, and protocol conversion), reducing cloud reliance and improving response speed and privacy.

• Simple Deployment and Compatibility

• • Pre-installed with Meshtastic firmware and support Meshtastic App, compatible with Meshtastic ad hoc networks, for out-of-the-box use.

• High-Precision Positioning

• • The L76K GPS module supports real-time, accurate positioning and location information sharing.

• IP65 Protection

• • The integrated sealing structure supports an IP65 protection level and can be used in environments ranging from -20°C to 60°C.

• Multiple mounting options

• • Supports wall mounting, bracket mounting, pole mounting, and U-shaped clamp mounting.

• Multi-scenario application coverage

• • It can be used in wide-area IoT applications( remote monitoring, environmental monitoring, and asset tracking), and also supports ad hoc networks, making it suitable for distributed deployment in areas without network coverage.

All-Weather Power Supply System

6W solar power + MPPT technology + large-capacity lithium battery = Ultra-long battery life

IP65 Waterproof

Holds up to a range of weather conditions

Support high-precision GPS positioning

Built-in high-sensitivity GPS module, Sharing of location information through the Meshtastic/LoRaWAN network

Flexible Expansion

Enabling quick access to various sensors, such as temperature, humidity, gas, and soil sensors etc.

Meshtastic APP Compatible

Who would benefit from it?

Outdoor enthusiasts and explorers, commercial and engineering service providers, scientific research and educational institutions

Where is it used?

Emergency communications and rescue, Mesh network expansion, outdoor environment monitoring, educational experiments

Hardware Overview

Specification

Main Processor（Nordic nRF52840）
CPU/SoC	32-bit Arm® Cortex™-M4 CPU at 64 MHz with FPU (Floating Point Unit)
System Memory	256 KB RAM
Storage	1 MB Flash memory, 16M Flash
Development language	C/C++、Python、JavaScript, etc.
Development Environment	nRF5 SDK、Keil、Segger Embedded Studio (SES)、Visual Studio Code (VS Code),etc.
Firmware	Supports the Meshtastic protocol and comes pre-flashed with firmware
Configuration interface	Official APP
LoRa Transceiver	The Semtech SX1262 sub-GHz wireless transceiver provides low-power, long-distance transmission, covering a frequency range of 150-960MHz. SPI communication is also available.
Wireless Communication
Bluetooth	Bluetooth Low Energy and Bluetooth 5.4
LoRa	SX1262 LoRa Transceiver、US 915MHz / EU 868MHz（External antenna）
Hardware
USB Interface	Type-C, External, for power supply and burning
Sensor Interface 1	For UART sensor communication, External, SP11 interface
Sensor Interface 2	For IIC sensor communication, External, SP11 interface
LoRa Antenna Interface	External, RP-SMA Interface
GPS Antenna Interface	External, RP-SMA Interface
Button	Function Button, Reset Button
LED Indicator	Power supply, GPS/LoRa indication
RTC	Yes, support interrupt/wake-up
Battery
Type	2x 18650 lithium-ion batteries, Panasonic
Capacity	7000mAh
Voltage	3.7V~4.2V
Protection	Explosion-proof design, all-steel housing, and battery safety valve
Power
Mainboard input	5V/1A, Type-C port
Solar Panel Output	6W, rated power output
Power consumption (LoRa)	Power consumption (OFF): 21uA Power consumption (transmitting and receiving): 192mA with GPS on, 147mA with GPS off
Buttons	On/Off
Other
Installation method	Wall mount, bracket, through rod, U-shaped clamp
Environmental level	IP65
Operating Temperature	-20~60°C
Storage Temperature	-30~70 °C
Relative humidity	10% to 90% RH (Relative Humidity) (non-condensing)
Size	210*156*42mm (excluding antenna and bracket)
Enclosure	Plastic
Net weight	530g

Why Choose Us?

As an industry-leading equipment manufacturer for 11 years, we rely on our independently developed core technology and the production strength of our factory to ensure that every product has precise quality control from design to manufacturing, and is both reliable and innovative. We provide online customer service support to answer your questions at any time, making the whole process worry-free. At the same time, we provide customized solutions to accurately meet your personalized needs. Choosing Elecrow means choosing safety, efficiency and professionalism.

Package List

• 1x ThinkNode M6- Outdoor Solar Power
• 1x LoRa Antenna
• 1x GPS Antenna

Wiki & External links

• Wiki
• User Manual
• CE and FCC Report
